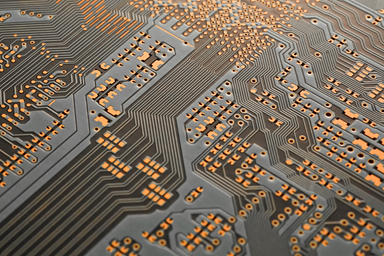

Differential Pair PCB: High-Speed PCB Design for Signal Integrity and Noise Reduction

What Is a Differential Pair PCB?

A Differential Pair PCB is a specialized printed circuit board designed with paired traces carrying equal and opposite signals. This design minimizes electromagnetic interference (EMI), reduces signal crosstalk, and maintains high-speed signal integrity. Differential pair PCBs are critical in applications where accurate high-speed data transmission is required, such as FPGA, CPU boards, 5G modules, IoT devices, and high-performance computing systems.

Why Differential Pair PCBs Are Essential

Differential pair routing ensures that any noise affecting one trace is canceled out by the opposite trace, significantly improving signal-to-noise ratio (SNR). This technology allows:

• Reliable high-speed data transfer across long PCB traces

• Reduced EMI and better compliance with industry standards

• Improved signal integrity in multi-gigabit systems

• Precise timing and minimal skew for differential signals

Design Considerations for Differential Pair PCBs

1. Controlled Impedance:

   • Trace width, spacing, and PCB material selection are critical to maintain target differential impedance (typically 90Ω–100Ω).

2. Length Matching:

   • Differential traces must be matched in length to prevent timing skew, especially in high-speed interfaces like PCIe, DDR memory, USB, HDMI, and Ethernet.

3. Layer Stack-Up Optimization:

   • Dedicated power and ground planes support stable return paths and maintain impedance consistency.

4. Low-Loss PCB Materials:

   • Laminates with low dielectric constant (Dk) and low dissipation factor (Df) minimize signal attenuation and distortion.

5. Crosstalk and Noise Management:

   • Proper trace spacing and shielding reduce interference from neighboring signals and improve overall system reliability.

Applications of Differential Pair PCBs

• High-speed digital communication interfaces (PCIe, USB, HDMI, Ethernet)

• 5G RF and communication modules

• IoT devices with high-speed data requirements

• High-performance computing servers and data centers

• Automotive ECUs and ADAS systems

Why Choose KKPCB for Differential Pair PCB Manufacturing

KKPCB provides comprehensive differential pair PCB services:

• Precision controlled impedance design for differential signals

• Multilayer PCB manufacturing supporting high-density routing

• Fine-pitch IC and high pin-count support

• Use of low-loss and high-Tg materials for optimal signal integrity

• Rigorous testing and quality assurance from prototype to mass production

Our engineering team ensures every differential pair PCB meets strict performance, reliability, and signal integrity standards, enabling seamless operation in high-speed and high-frequency applications.
