| PCB Material Type | |||
|---|---|---|---|
| Rogers | RO4350B / RO4450F /4000serials / R04003C / 92ML / RO3010 / RT6010LM / RO3003 / RO4360G2 / RT6002 / RO3006 / RO4835™ / RO4350B™ / RO3035/Duroid® 5870 / duroid® 5880 / ULTRALAM2000 / 6002 / RO3003 / RO3730 / RO3850 / RO4534 / RO4730 / RO4360serials /RT/D6010lm / TMM10 | Panasonic | Megtron2 / M3 / M4/ M4(R5725) / M4S / M6(Series) / M7(Series) / R-5675 / R-5770 / R-5772 / R-5775 / R-5777 / R-5778 / R-5625 / R-5720 / R-5725 / R1761 / R1762 / R1766 /R1755C / R1755V / R1755M / R-5775 / R5725 / R1566 / R1750C / R1752C / R1758C / R1757 / R1655V / R1566(W) / R1577(E) / R-1566 / R1551 / R1566 / R1521 / R1561 / R1562 / R1567 / R1568 / R1082 / R1782 / R1787 / R-1781 / R1786 / R5785 / RF775 / RF770 /RF705 / R-F705T / RO1200 |
| Isola | 370HR / PCL-FR-370HR / PCL-FR-370 Turbo / PCL-HP-850 / PCL-FR-250HR / PCL-HP-870/ IS400 / FR-254 / Auto-HR PCL-HP-850 / PCL-FR-250HR / PCL-HP-870/185HR / FR408HR / FR408 / IS811 /I S415 / I-Speed/GigaSync Stratus ML200＋ / FR406 / FR406N / FR406BC / FR402 / 185HR / IS410 / DSDE104i-3 / IS620 / IS680 / IS680AG-300 / I-TERA MT / IS680-330 / IS680-345 / Tachyon-100G | Ventec | VT-47(Series) / VT-481(Series) / VT42(Series) / VT-47RD / VT-575 / VT-585 / VT-47TC / VT-47PP / VT-41 / VT-41RD / VT-45 / VT-441 / VT-447 / VT-45RD / VT-4A Series / VT-4B Series / VT-901 |
| Arlon | 33N / 35N /85N / AD250 / TC350 / CLTE-AT / 25FR / AD270 / AD300 / AD300C / AD320 / AD350 / AD350A / 25N / AD255(C)(A) /AD250(A) / DiClad527 / DiClad880 / CLTE-XT / CLTE-AT / CLTE / TC600 / AD600 / AD1000 | TUC | TU-752 / TU-768 F / TU-768 / TU-788 / TU-668(series) / TU-862(series) / TU-862HF / TU-862(series) / TU-862S / TU-863 / TU-742HF / TU-742MV / TU-747HF / TU-865 / TU-868 / TU-815 / TU722 / TU662 / TTU721 / TU622-5 / TU622-LE / TU-872(series) / TU933 / TU933B / TU933(series) / TU930 / TU832 / TU883(series) / TU803 / TU865 |
| Taconic | RF-35(Series) / TLY-5 / TLY-5A / TLY(Series) / TLP-5 / TLX-(Series) / TLF-35 / TLC-32 / TRF-43 / TLX(Series) / RF30(Series) / RF60A / TLF-34 / TSM-DS3 / TLC-30 / RF-35 / RF-35A2 / TLC-35 / RF-60A /RF-60TC / CER-10 / EZIO | ITEQ | IT158TC / IT180ATC / IT180A / IT140TC / IT180TC / IT170GRATC / IT150DATC / IT200LKTC / IT968TC / IT140GTC / IT150GTC / IT150GL1TC / IT150GSTC / FD131218NFB1 / FS252035NFB1 / IT-859GTA / IT170GRA1 / IT150DA / IT200LK / IT968 |
| Nelco | N4100(Series) / N4000(Series) / N4103(Series) / N4203(Series) / N4105(Series) / N4805(Series) / N7000(Series) / N9000(Series) / N4350 / N4380 / NP-140(Series) / NY9217 / NH9300 / NX9300 / N9350-13RF / N9320-13RF / MW4000 / MW3000 / MW2000 / MW1000 / N4000-13/EP/SI / N4800-20/SI | Nanya | NP-170R / TL / SR / STL / NP-175FR / FTL / FMTL / NPGN-150 / NY2150 / NY2170 / NA6200 / NY2140 / NY1140 |
| Dupont | AP7163E / AP7164E / AP8515R / AP9111R / AP9212R / AP7156E / AP7125E / AP8525 / AP9121R / AP9222R / AP8535R /AP9131R / AP9232R /AP8545R/ AP9141R /AP9242R/ AP8555R / AP9151R / AP9252R / AP8565R / AP9161R / AP9262R / FR(Series) | Shengyi | S1141(series) / S1000(series) / S1600 / S1145(series) / S1125 / S7542 / S1150(series) / S1170(series) / S1190 / S7439 / S7135 / S7136 / S7038 / S7045(series) / S1150G(series) / S3110 / S3116 / S7542 / S2600 / S1165 / S1155(K) / S1130 / SF302 / S305 / SAR15 / SAR20 / SH260 / ST210G / S1140(series) / S7335 / S7338 / S7040G / Synamic 6(N) |
| CSEM | CS-AL-88(Series) / CS-AL-89(Series) / AD2(2W) / AD3(3W) / AD5(5W) / AD8(8W) / M9(9W) | EMC | EM825(Series) / EM827(Series) / EM828(Series) / EM285(Series) / EM370(Series) / EM888(Series) / EM891 / EM220 / EM37 / EM320 / EM310 / EM-355(D) |
| Kingboard | KB6160 / KB6164 / KB6165 / KB6167 / KB6165F / KB6150 / KB5150 / KB6060 / KB6064 / HF-140PP / KB-6160C / KB1150 / KB7150 | ThinFlex | A-2010RD(Series) / A-1010RD(Series) / G-1010RD(Series) / X-1005RS(Series) / G6-0610ED/ H-1010RS(Series) / P-1005ED / J-1010RS(Series) / K-1010RS(Series) / T-1010RS(Series) / TinFlex-KB(Bond Ply) / TinFlex-N(Bond Ply) / ThinFlex-R(Bonding Sheet) / ThinFlex-U(Bonding Sheet) / ThinFlex-KC(Bonding Sheet) / FhinFlex-I(Coverlay Series) / FhinFlex-M(Q/V/KA) |
| Advanced High-Performance PCB Materials | ||
|---|---|---|
| General Tg FR4 | shengyi S1141, Kingboard KB6160A | shengyi S1141 |
| High-Tg Halogen-free | shengyi S1170G Halogen-free TG170, TU-862 HF TG170 | shengyi S1170G Halogen-free TG170, TU-862 HF TG170 |
| Medium Tg Halogen-free | shengyi S1150G Halogen-free TG150 | shengyi S1150G Halogen-free TG150 |
| High Halogen-free CTI | shengyi S1151G (CTI≥600V) | shengyi S1151G (CTI≥600V) |
| High CTI | shengyi S1600 (CTI≥600V), Kingboard KB6160C | shengyi S1600 (CTI≥600V), Kingboard KB6160C |
| Special Material (High low temperature) | shengyi SH260 | shengyi SH260 |
| High Tg FR4 | S1000-2, S1000-2M, IT180A | S1000-2, S1000-2M, IT180A |
| Ceramic powder filled high frequency | Rogers4003, Rogers4350, Arlon25N, shengyi S7136 | Rogers4350, Rogers4003, shengyi S7136 |
| PTFE high frequency material | Rogers, Taconic, Arlon, Taizhou wangling | Rogers, Taconic, Arlon, Taizhou wangling |
| High Frequency PCB PP | RO4450 0.1mm, shengyi Synamic6 | RO4450 0.1mm, shengyi S6 |
| High Speed (1-5G) | MEG4, Tu-862, Tu-662, Tu-768, S7038, S1165, Isola-FR408HR, Isola-FR406, EMC TW-EM370, EM828G IT170GRA NP175FM (Nanya) | MEG4, Tu-862, Tu-662, Tu-768, S7038, S1165, Isola-FR408HR, Isola-FR406, EMC TW-EM370, EM828G IT170GRA NP175FM (Nanya) |
| High Speed (5-10G) | MEG4, Tu-872, N4000-13, M4, Tu-863 (Halogen-free), Synamic4, EM-888, I-Speed (Isola), N4800-20SI (Nelco), IT-958G | MEG4, Tu-872, N4000-13, M4, Tu-863 (Halogen-free), Synamic4, EM-888, I-Speed (Isola), N4800-20SI (Nelco), IT-958G |
| High Speed (10-25G) | MEG6, Tu-883, shengyi Synamic6, Meteorwave1000/2000/3000 (Nelco), EM-891 (EMC TW), EM-888K, IT-968, I-Tera MT40 (Isola) | MEG6, Tu-883, shengyi Synamic6, Meteorwave1000/2000/3000 (Nelco), EM-891 (EMC TW), EM-888K, IT-968, I-Tera MT40 (Isola) |
| High Speed (＞25G) | MEG7, Tu-933, Meteorwave4000 (Nelco), IT-988, Tachyon 100G (Isola) | MEG7, Tu-933, Meteorwave4000 (Nelco), IT-988, Tachyon 100G (Isola) |
| High Frequency PCB DK 2.2-2.25 | RO5880, TLY-5 (Taconic), SCGA-500 GF220 (shengyi), F4BK225 | / |
| High Frequency PCB DK 2.33 | RO5870, TLY-3 (Taconic) | / |
| High Frequency PCB DK 2.45 | TLX-0 (Taconic), TLT-0 (Taconic) | / |
| High Frequency PCB DK 2.5-2.55 | AD250 (Arlon), TLT-9 (Taconic), TLY-9 (Taconic); SCGA-500 GF255 (shengyi), TLT-8 (Taconic), TLY-8 (Taconic), F4B255 | / |
| High Frequency PCB DK 2.6-2.65 | TLT-7 (Taconic), TLY-7 (Taconic); TLT-6 (Taconic), TLY-6 (Taconic), SCGA-500 GF265 (shengyi), F4B265 | / |
| High Frequency PCB DK 2.7-2.75 | AD270 (Arlon); TLC-27 (Taconic) | / |
| High Frequency PCB DK 2.92-2.94 | RO6002, CLTE (Arlon) | / |
| High Frequency PCB DK 2.95 | AD295 (Arlon), TLE-95 (Taconic) | / |
| High Frequency PCB DK 3.0 | AD320 (Arlon), AR-320 (Arlon), TLC-32 (Taconic); TMM-3 (Rogers); 25N (Arlon) | / |
| High Frequency PCB DK 3.37-3.38 | 25FR (Arlon), Ro4003 | / |
| High Frequency PCB DK 3.48-3.5 | RO4350, RO4835, AR-350 (Arlon), RF-35 (Taconic), F4BK350 | / |
| High Frequency PCB DK 3.6 | AD360 (Arlon) | / |
| High Frequency PCB DK 4.5 | AR-450 (Arlon), TMM-4 (Rogers) | / |
| High Frequency PCB DK 6.0 | AR-600 (Arlon), TMM-6 (Rogers) | / |
| High Frequency PCB DK 6.15 | RO3006, RO6006, RO4360 | / |
| High Frequency PCB DK 9.2-9.8 | TMM-10 (Rogers), TMM-101 (Rogers) | / |
| High Frequency PCB DK 10.0-10.2 | AR-1000 (Arlon), CER-10 (Taconic), RO3010, RO3210, RO6010 | / |

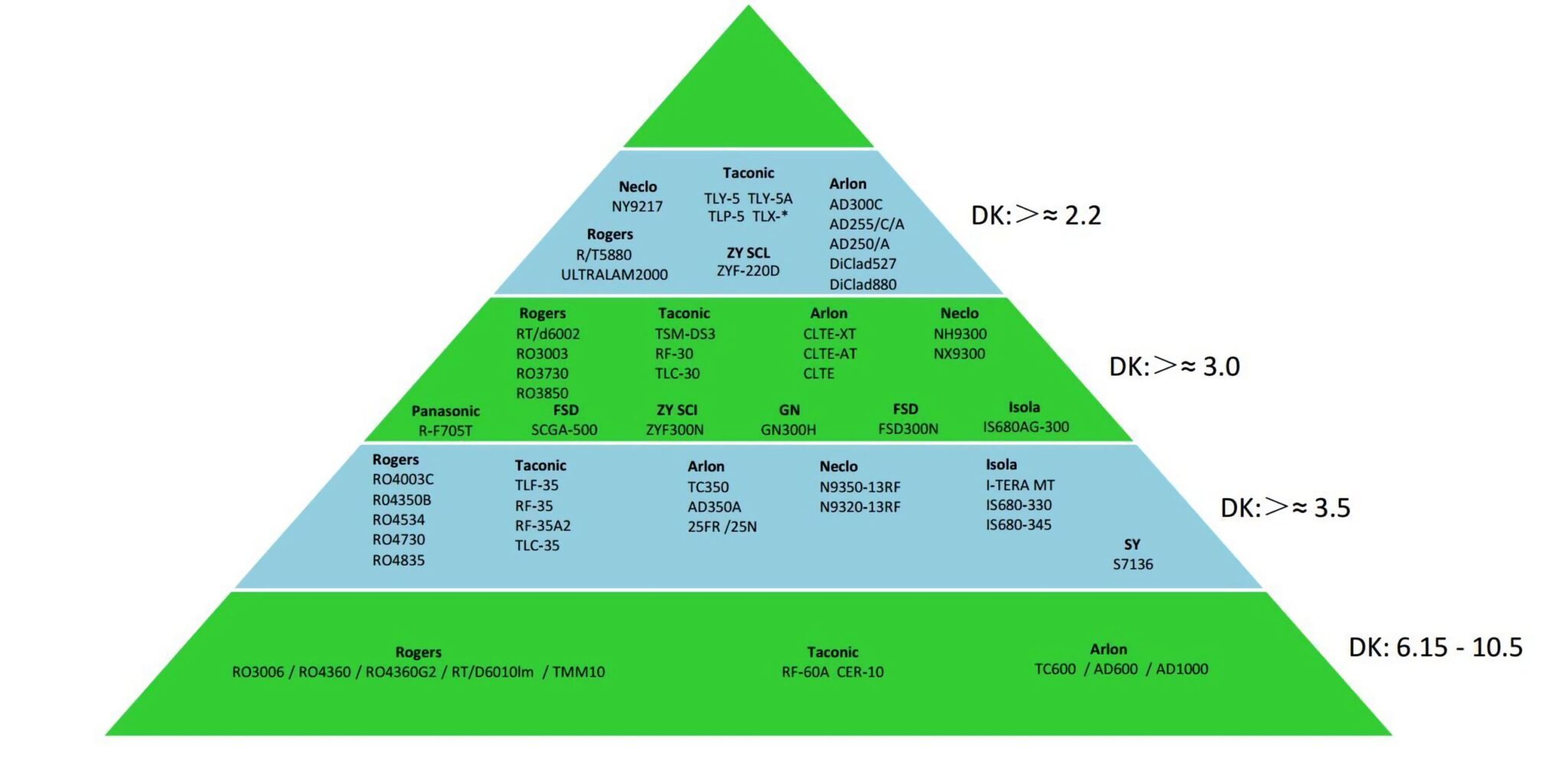

// PCB Material TypesDielectric Constant (DK) of PCB Materials
The dielectric constant (DK) of PCB materials is a critical parameter for high-frequency and high-speed circuits. KKPCB provides materials with controlled DK values to ensure signal integrity, minimal loss, and optimal performance for RF, microwave, and 5G applications.

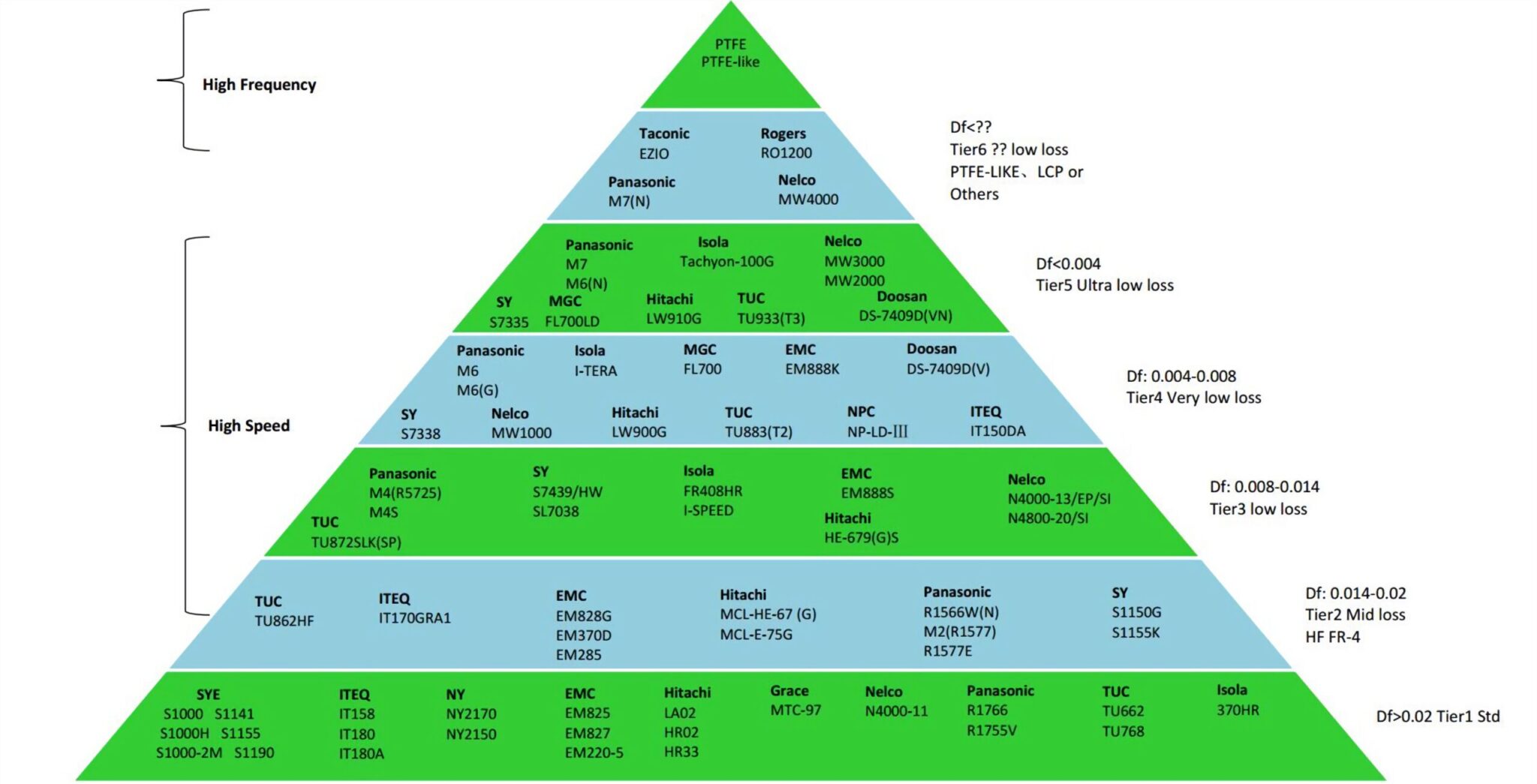

// PCB Material TypesDissipation Factor (Df) of High-Frequency & High-Speed PCB Materials
The dissipation factor (Df) is a key parameter that measures dielectric energy loss in PCB materials. KKPCB provides high-frequency and high-speed PCB materials with low and stable Df values, ensuring minimal signal loss, high efficiency, and reliable performance in RF, microwave, and 5G applications.
