With the continuous evolution of electronic products toward miniaturization, lightweight design, and higher reliability, traditional rigid PCBs and flexible PCBs each face certain limitations in advanced applications.

Rigid PCBs provide excellent mechanical strength and dimensional stability but lack flexibility for complex installation environments. Flexible PCBs offer excellent bending capability and space utilization but may not always provide sufficient mechanical support for some high-reliability applications.

Semi-rigid PCBs provide an intermediate solution by combining the structural stability of rigid circuit boards with a certain level of mechanical flexibility. They are designed to meet the requirements of compact electronic systems where space constraints, reliability, and assembly flexibility are equally important.

Semi-rigid PCB technology is increasingly applied in:

• Automotive electronics
• Aerospace electronics
• Industrial control systems
• Medical devices
• RF and microwave applications
• Wearable electronic products

This article explores the structure, advantages, manufacturing process, applications, and design considerations of semi-rigid PCBs.

1. What Is a Semi-Rigid PCB?

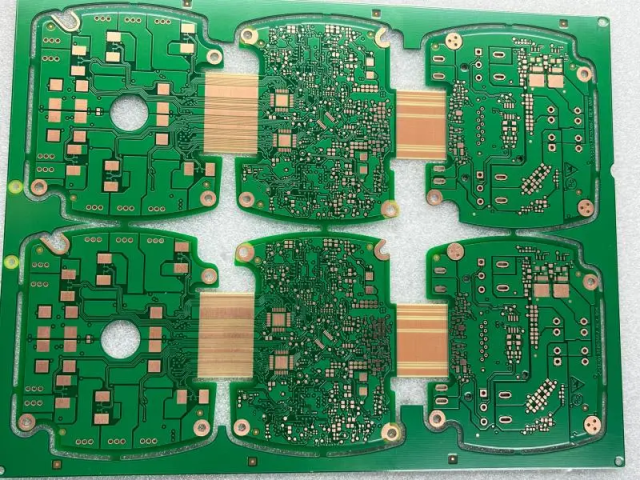

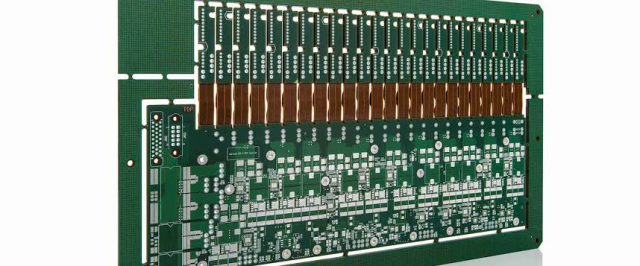

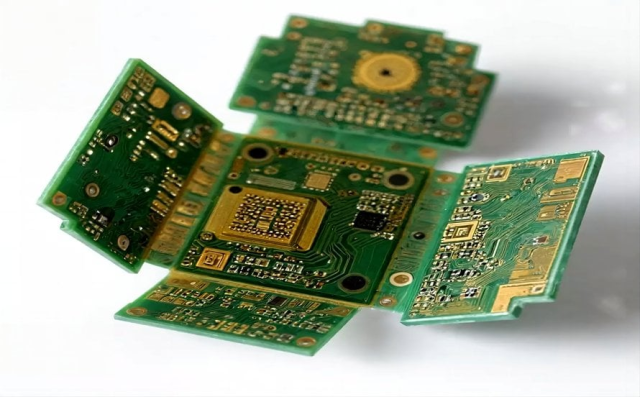

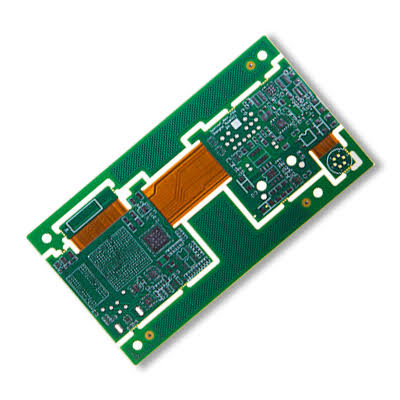

A semi-rigid PCB is a circuit board structure that combines characteristics of both rigid and flexible circuit technologies.

Unlike fully rigid PCBs, semi-rigid PCBs can withstand a certain amount of controlled bending or deformation during installation.

Unlike fully flexible PCBs, they maintain stronger mechanical support and dimensional stability.

A typical semi-rigid PCB structure may include:

• Rigid sections for component mounting
• Flexible transition areas for bending or connection
• Copper conductive layers
• Dielectric materials
• Protective cover layers

The design allows engineers to optimize space usage while maintaining reliable electrical performance.

2. Semi-Rigid PCB vs Rigid PCB vs Flexible PCB

Semi-rigid PCBs are especially suitable when:

• A rigid mounting area is required
• Limited bending is needed
• Space optimization is important

3. Key Advantages of Semi-Rigid PCBs

3.1 Improved Space Utilization

One of the biggest advantages of semi-rigid PCBs is their ability to fit into compact electronic structures.

Compared with traditional rigid boards, they can:

• Adapt to irregular product shapes
• Reduce connector requirements
• Minimize assembly space

This makes them suitable for applications where internal space is limited.

3.2 Enhanced Mechanical Reliability

Semi-rigid PCBs provide better mechanical support compared with flexible PCBs.

Advantages include:

• Stable component mounting
• Reduced mechanical stress
• Improved dimensional consistency

This is particularly important for:

• Automotive environments
• Industrial equipment
• High-vibration applications

3.3 Reduced Assembly Complexity

Traditional PCB systems may require:

• Multiple rigid boards
• Additional connectors
• Cable assemblies

Semi-rigid PCB designs can integrate multiple functions into one structure.

Benefits:

• Fewer connection points
• Reduced assembly steps
• Lower potential failure risks

3.4 Improved Signal Integrity

Semi-rigid PCBs can provide controlled signal paths, especially for high-frequency applications.

Advantages include:

• Shorter transmission paths
• Reduced connector losses
• Better impedance control

This is valuable for:

• RF modules
• High-speed communication systems
• Microwave circuits

3.5 Lightweight Design

By reducing:

• Mechanical connectors
• Wiring harnesses
• Additional support structures

semi-rigid PCBs contribute to:

• Lower product weight
• Higher integration density

4. Materials Used in Semi-Rigid PCBs

Material selection plays an important role in electrical performance and reliability.

4.1 FR-4 Materials

FR-4 is commonly used for rigid sections.

Advantages:

• Good mechanical strength
• Cost-effective
• Mature manufacturing process

Applications:

• Industrial electronics
• Control systems

4.2 Flexible Materials

Flexible sections may use materials such as:

• Polyimide (PI)

Advantages:

• Excellent flexibility
• High temperature resistance
• Good dimensional stability

Applications:

• Dynamic bending areas
• Compact electronic assemblies

4.3 High-Frequency Materials

For RF and microwave semi-rigid PCB applications, low-loss materials may be selected.

Important parameters include:

• Dielectric constant (Dk)
• Dissipation factor (Df)
• Thermal stability

Applications:

• Antenna modules
• Radar systems
• Communication equipment

5. Manufacturing Process of Semi-Rigid PCBs

Semi-rigid PCB manufacturing requires precise process control because it combines different material characteristics.

5.1 Engineering Review and Stack-Up Design

Before manufacturing, engineers analyze:

• Mechanical requirements
• Bending areas
• Layer structure
• Material compatibility

Important considerations:

• Bend radius
• Copper thickness
• Material expansion characteristics

5.2 Layer Preparation

Different materials are prepared according to the PCB structure.

The process requires controlling:

• Material alignment
• Adhesion quality
• Thickness tolerance

5.3 Circuit Pattern Formation

The circuit pattern is created through:

• Photo imaging
• Etching
• Copper processing

Precision is required to maintain:

• Trace width accuracy
• Signal performance

5.4 Lamination Process

The rigid and flexible sections are bonded together through controlled lamination.

Important parameters:

• Temperature
• Pressure
• Curing time

Poor lamination may lead to:

• Delamination
• Mechanical failure
• Reduced reliability

5.5 Drilling and Via Processing

Semi-rigid PCBs may require:

• Mechanical drilling
• Laser drilling
• Microvia structures

Manufacturing control is important for:

• Hole reliability
• Layer connection quality

5.6 Surface Finishing

Common surface finishes include:

• ENIG
• ENEPIG
• HASL

Selection depends on:

• Component requirements
• Assembly process
• Reliability targets

6. Design Considerations for Semi-Rigid PCBs

6.1 Define Proper Bend Areas

The bending region should be carefully designed.

Avoid placing:

• Components
• Solder joints
• Sharp trace corners

within bending zones.

6.2 Control Bend Radius

Excessive bending can cause:

• Copper cracking
• Layer separation
• Electrical failures

Design should follow recommended minimum bend radius requirements.

6.3 Optimize Copper Layout

Copper distribution affects mechanical reliability.

Recommended practices:

• Avoid sudden copper changes
• Use rounded trace corners
• Maintain balanced copper distribution

6.4 Consider Thermal Expansion Differences

Different materials have different coefficients of thermal expansion (CTE).

Poor matching may result in:

• Mechanical stress
• Delamination
• Reliability issues

6.5 Apply DFM Analysis

Early DFM review helps identify:

• Manufacturing limitations
• Material compatibility issues
• Assembly risks

This improves:

• Production yield
• Reliability
• Cost control

7. Applications of Semi-Rigid PCBs

7.1 Automotive Electronics

Applications include:

• Vehicle control modules
• Sensor systems
• Intelligent driving electronics

Advantages:

• Vibration resistance
• Space optimization
• Reliable connections

7.2 Aerospace and Defense Electronics

Requirements:

• High reliability
• Lightweight structure
• Environmental resistance

Semi-rigid PCBs help reduce:

• Wiring complexity
• System weight

7.3 RF and Microwave Systems

Applications include:

• Antenna modules
• Wireless communication devices
• Radar systems

Advantages:

• Controlled impedance
• Reduced signal path length
• Stable high-frequency performance

7.4 Medical Devices

Applications include:

• Portable monitoring equipment
• Diagnostic devices
• Wearable medical electronics

Requirements:

• Compact size
• Reliability
• Long service life

7.5 Industrial Electronics

Applications:

• Automation systems
• Embedded controllers
• Measurement equipment

Advantages:

• Mechanical durability
• Design flexibility

8. Challenges of Semi-Rigid PCB Technology

Although semi-rigid PCBs provide many benefits, several challenges remain.

8.1 Manufacturing Complexity

Combining different materials requires:

• Advanced equipment
• Precise process control
• Experienced engineering support

8.2 Cost Considerations

Compared with standard rigid PCBs:

• Material cost may be higher
• Manufacturing processes are more complex

8.3 Design Restrictions

Engineers must carefully consider:

• Bending limitations
• Layer transitions
• Mechanical stress

9. Future Development Trends of Semi-Rigid PCBs

As electronic products continue to evolve, semi-rigid PCB technology is expected to develop toward:

Higher Integration Density

Future designs will require:

• Smaller structures
• More functional integration

Better High-Frequency Performance

Increasing communication speeds will drive demand for:

• Low-loss materials
• Improved impedance control

Advanced Manufacturing Technologies

Future improvements may include:

• Improved laser processing
• More reliable material bonding
• Higher precision fabrication

Conclusion

Semi-rigid PCBs provide an effective balance between mechanical stability, flexibility, and electrical performance. By combining the advantages of rigid and flexible circuit technologies, they offer an ideal solution for compact and high-reliability electronic systems.

Successful semi-rigid PCB development requires careful consideration of:

• Material selection
• Stack-up design
• Bend area planning
• Signal integrity
• Manufacturing capability

With increasing demand for lightweight, compact, and reliable electronic products, semi-rigid PCBs will continue to play an important role in next-generation electronic design.
