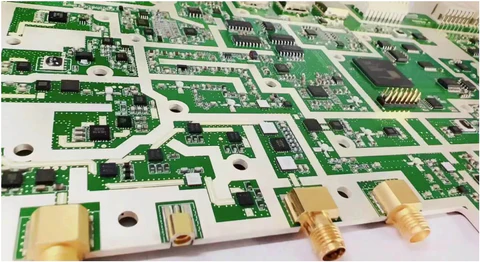

What Is an RF-35 PCB?
An RF-35 PCB is a high-frequency printed circuit board fabricated with Taconic RF-35 laminate, designed for RF and microwave applications that require low loss, stable dielectric constant, and reliable impedance control.
RF-35 PCB material provides excellent electrical performance while maintaining good manufacturability, making it suitable for both prototype and production RF designs.
Key Material Properties of RF-35 PCB
Taconic RF-35 laminate offers balanced electrical and mechanical characteristics:
-
Dielectric constant (Dk): ~3.50
-
Low dissipation factor (Df): ~0.0018
-
Excellent thermal stability
-
Low moisture absorption
-
Good dimensional stability
These properties allow RF-35 PCB to deliver consistent RF performance across a wide frequency range.
Advantages of RF-35 PCB
Using RF-35 PCB provides several advantages:
-
Low insertion loss for high-frequency signals
-
Stable impedance for RF transmission lines
-
Excellent signal integrity
-
Cost-effective alternative to PTFE-based materials
-
Reliable performance in RF and microwave systems
RF-35 PCB is especially suitable for medium-to-high frequency applications.
Design Considerations for RF-35 PCB
When designing an RF-35 PCB, key factors include:
-
Accurate impedance calculation
-
Optimized RF trace geometry
-
Solid ground plane design
-
Via fencing for RF isolation
-
Connector launch optimization
Proper design ensures the full performance of RF-35 PCB material.
Manufacturing Challenges of RF-35 PCB
Producing a high-quality RF-35 PCB requires:
-
Tight dielectric thickness control
-
Precise impedance tolerance
-
Copper roughness management
-
Accurate layer registration
-
RF-specific electrical testing
Experienced PCB manufacturers can fully utilize RF-35 material advantages.
Applications of RF-35 PCB
RF-35 PCBs are widely used in:
-
RF Test PCB and validation boards
-
Wireless communication equipment
-
5G and broadband devices
-
Microwave modules
-
RF measurement instruments
-
Antenna and RF front-end designs
They are well suited for both test and production environments.
Conclusion
An RF-35 PCB offers an excellent balance between low loss, stable RF performance, and cost efficiency. With reliable dielectric properties and good manufacturability, RF-35 PCB is a practical choice for a wide range of RF and microwave applications.
Partnering with a professional RF-35 PCB manufacturer ensures consistent quality, accurate impedance control, and dependable RF performance from prototype to mass production.
