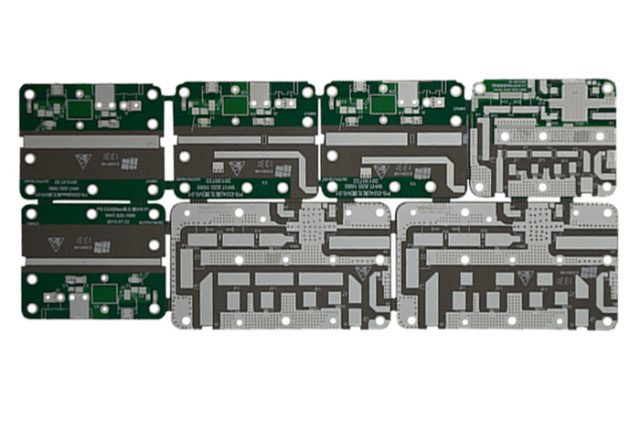

What Is an RF-35 PCB?
An RF-35 PCB is a high-frequency printed circuit board fabricated using Taconic RF-35 laminate, specifically designed for RF, microwave, and high-speed signal transmission applications.
RF-35 PCB material provides low dielectric loss, stable electrical performance, and good thermal reliability, making it a popular choice for RF Test PCB, communication equipment, and impedance controlled PCB designs.
Key Material Properties of RF-35 PCB
Taconic RF-35 laminate offers a balanced combination of electrical and mechanical performance:
-
Dielectric constant (Dk): ~3.50
-
Low dissipation factor (Df): ~0.0018
-
Low moisture absorption
-
Excellent thermal stability
-
Good dimensional control for multilayer PCBs
These characteristics allow RF-35 PCBs to maintain consistent performance across a wide frequency range.
Advantages of RF-35 PCB
Using an RF-35 PCB provides multiple advantages for RF designers:
-
Low insertion loss for high-frequency signals
-
Stable impedance for RF transmission lines
-
Excellent signal integrity
-
Cost-effective compared with PTFE-based RF materials
-
Suitable for both prototype and mass production
Because of its balance between performance and cost, RF-35 PCB is widely used in commercial RF applications.
Design Considerations for RF-35 PCB
To fully leverage RF-35 PCB material, designers should focus on:
-
Accurate impedance calculation and control
-
Optimized microstrip and stripline routing
-
Solid ground plane and via fencing
-
Minimized signal discontinuities
-
Optimized RF connector launch design
Proper RF layout is critical to achieving low loss and stable performance.
Manufacturing Requirements for RF-35 PCB
Manufacturing RF-35 PCBs requires specialized process control:
-
Tight dielectric thickness tolerance
-
Precise impedance control (±5% or better)
-
Controlled copper surface roughness
-
Accurate multilayer registration
-
High-frequency electrical testing
An experienced RF PCB manufacturer is essential for consistent quality.
Applications of RF-35 PCB
RF-35 PCBs are widely used in:
-
RF Test PCB and validation boards
-
Wireless communication equipment
-
5G and broadband devices
-
RF sensor and front-end modules
-
Microwave and measurement instruments
-
Impedance controlled PCB designs
They are suitable for both testing and end-product applications.
Conclusion
An RF-35 PCB offers an excellent balance of low loss, stable RF performance, and cost efficiency. With reliable dielectric properties and good manufacturability, RF-35 PCB is a practical solution for a wide range of high-frequency and RF applications.
Choosing a professional RF-35 PCB manufacturer ensures accurate impedance control, stable signal integrity, and reliable performance from prototype to volume production.
