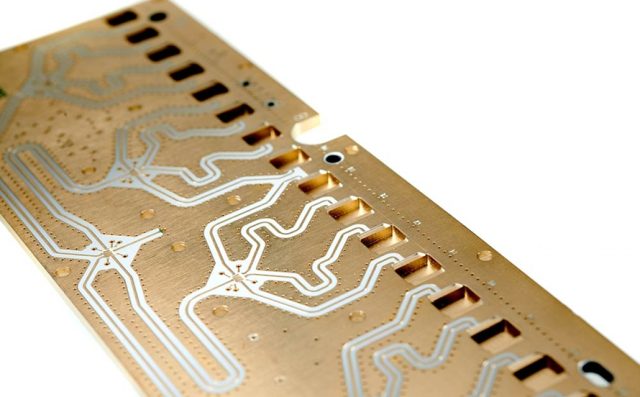

What Is a PTFE PCB?
A PTFE PCB is a printed circuit board manufactured using polytetrafluoroethylene (PTFE)-based laminate materials. PTFE is widely recognized for its extremely low dielectric loss, stable electrical properties, and excellent performance at microwave and millimeter-wave frequencies.
Because of its superior electrical characteristics, PTFE PCB is commonly used in high-frequency RF systems, radar modules, satellite communication equipment, and advanced antenna designs.
Why PTFE Is Ideal for High Frequency Circuits
At high frequencies, PCB substrate properties directly influence signal attenuation and phase stability. PTFE offers several critical advantages:
1. Extremely Low Dielectric Loss (Low Df)
PTFE materials feature very low dissipation factor, which:
-
Reduces insertion loss
-
Improves signal transmission efficiency
-
Maintains signal strength over longer trace lengths
This is especially important in GHz and millimeter-wave designs.
2. Stable Dielectric Constant (Dk)
PTFE provides consistent dielectric constant across a wide frequency range, ensuring:
-
Accurate impedance control
-
Stable phase performance
-
Reduced signal distortion
This stability is crucial for RF filters, couplers, and high-speed communication modules.
3. Excellent Thermal and Chemical Stability
PTFE is chemically inert and maintains stable performance under harsh environmental conditions. It offers:
-
Wide operating temperature range
-
Moisture resistance
-
Strong chemical resistance
These characteristics make PTFE PCB suitable for aerospace and outdoor communication systems.
Structural Configurations of PTFE PCB
PTFE-based PCBs can be manufactured in various forms:
-
Single-layer RF boards
-
Double-layer microwave circuits
-
Multilayer PTFE structures
-
Hybrid stack-ups (PTFE + FR4)
-
Controlled impedance multilayer boards
Hybrid constructions are often used to balance cost and performance.
Manufacturing Challenges of PTFE PCB
Although PTFE offers excellent electrical properties, it presents unique fabrication challenges:
-
Soft material requiring controlled drilling parameters
-
Higher thermal expansion compared to FR4
-
Special lamination processes
-
Surface preparation requirements for copper adhesion
Professional manufacturing capability is essential to ensure dimensional stability and electrical consistency.
Applications of PTFE PCB
PTFE PCBs are widely used in:
-
5G base station modules
-
Automotive radar systems (24GHz / 77GHz)
-
Satellite communication systems
-
RF power amplifiers
-
Phased array antennas
-
Military communication equipment
-
Microwave test boards
In millimeter-wave systems, substrate loss becomes increasingly critical, making PTFE an ideal material choice.
PTFE PCB vs Standard FR4 PCB
| Feature | Standard FR4 PCB | PTFE PCB |
|---|---|---|
| Frequency Suitability | Low–Moderate | High / Microwave |
| Dielectric Loss | Higher | Extremely Low |
| Dk Stability | Moderate | Excellent |
| Moisture Resistance | Standard | Superior |
| Cost | Lower | Higher |
PTFE PCB is typically selected when electrical performance is prioritized over material cost.
Conclusion
PTFE PCB technology provides ultra-low loss performance and stable dielectric properties essential for RF and microwave applications. While fabrication complexity is higher compared to standard materials, the electrical advantages make PTFE PCB indispensable in high-frequency and millimeter-wave system design.
As communication frequencies continue to increase, PTFE-based PCB solutions remain a key foundation for reliable and efficient RF transmission.
