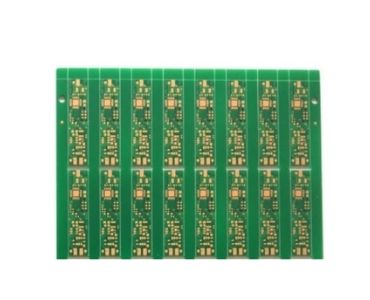

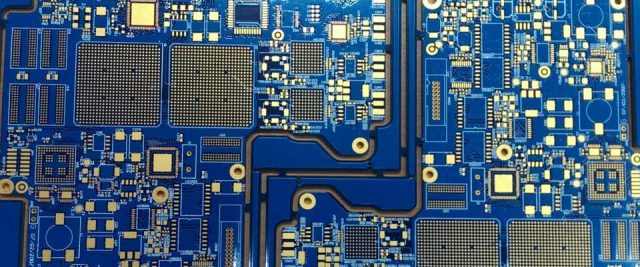

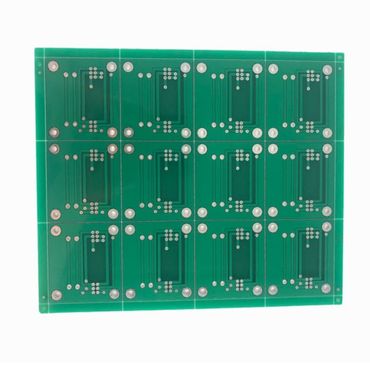

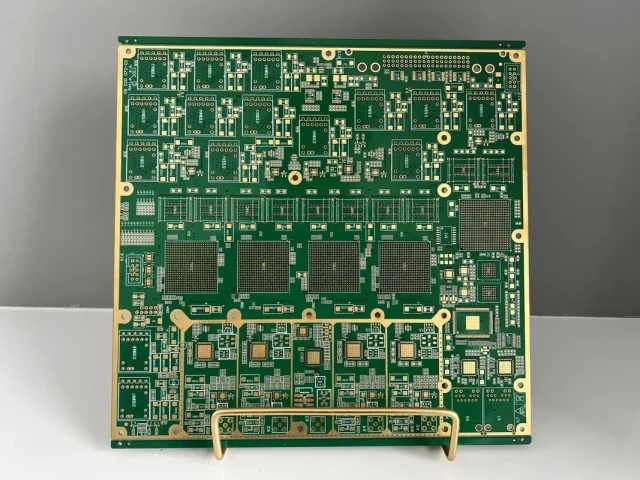

What Is Megtron 7 PCB?
A Megtron 7 PCB is a high-performance printed circuit board fabricated using Panasonic Megtron 7 laminate, an ultra-low loss material developed for high-speed digital and high-frequency signal transmission. Megtron 7 PCBs are widely used in data centers, AI servers, networking equipment, and advanced computing systems where signal integrity is critical.
Compared with conventional FR-4 and standard high-Tg materials, Megtron 7 PCB offers significantly lower dielectric loss, better impedance stability, and superior signal integrity at very high data rates.
Key Material Properties of Megtron 7 PCB
Panasonic Megtron 7 laminate delivers outstanding electrical performance:
-
Dielectric constant (Dk ≈ 3.3–3.4)
Stable Dk supports precise impedance control. -
Ultra-low dissipation factor (Df ≈ 0.001 @ 10 GHz)
Minimizes insertion loss for high-speed signals. -
Excellent thermal reliability
Supports lead-free and high-temperature assembly. -
Low coefficient of thermal expansion (CTE)
Enhances plated through-hole reliability in multilayer designs. -
High glass transition temperature (Tg)
Ensures mechanical stability during fabrication and operation.
These properties make Megtron 7 PCB ideal for advanced digital systems.
Megtron 7 PCB Manufacturing Considerations
Manufacturing a Megtron 7 PCB requires strict process control and experience with ultra-low loss materials:
-
Tight impedance control for high-speed differential pairs
-
Smooth copper options (HVLP / VLP) to reduce conductor loss
-
High-precision etching for fine line and spacing designs
-
Accurate layer alignment for high-layer-count PCBs
-
Comprehensive electrical and impedance testing
Megtron 7 PCBs are often combined with HDI structures, back drilling, and controlled stack-ups to meet performance targets.
Advantages of Megtron 7 PCB
Using a Megtron 7 PCB provides key benefits:
-
Ultra-low signal loss at high data rates
-
Excellent signal integrity for 56G / 112G designs
-
Stable performance across wide frequency ranges
-
Suitable for high-layer-count and complex stack-ups
-
Long-term reliability in mission-critical systems
These advantages make Megtron 7 PCB a preferred choice for next-generation electronics.
Applications of Megtron 7 PCB
Megtron 7 PCBs are widely used in:
-
High-speed server and data center PCBs
-
AI and machine learning hardware
-
Networking switches and routers
-
Telecom infrastructure and optical modules
-
High-speed test and evaluation boards
-
Advanced computing and storage systems
Megtron 7 PCB is especially suitable for designs requiring extremely low insertion loss and tight impedance control.
Megtron 7 PCB vs FR-4 PCB
Compared with FR-4 PCBs, Megtron 7 PCBs offer:
-
Much lower dielectric loss
-
Superior signal integrity at high speeds
-
More stable impedance
-
Better performance for long-distance signal transmission
For high-speed digital designs, Megtron 7 PCB delivers a significant performance upgrade.
Conclusion
A Megtron 7 PCB is an advanced solution for high-speed and high-frequency applications where ultra-low loss and signal integrity are critical. With outstanding electrical performance and reliability, Megtron 7 PCBs enable next-generation servers, AI systems, and networking equipment.
Choosing an experienced Megtron 7 PCB manufacturer ensures optimized stack-up design, accurate impedance control, and consistent production quality.
