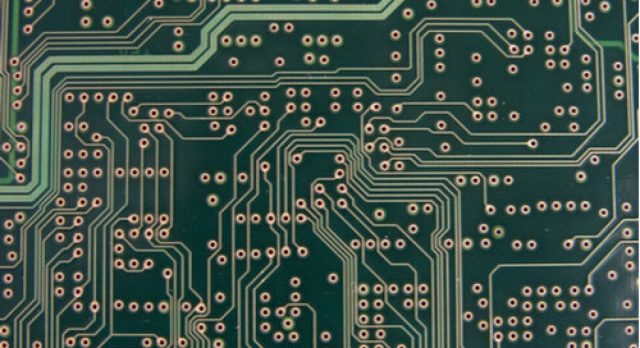

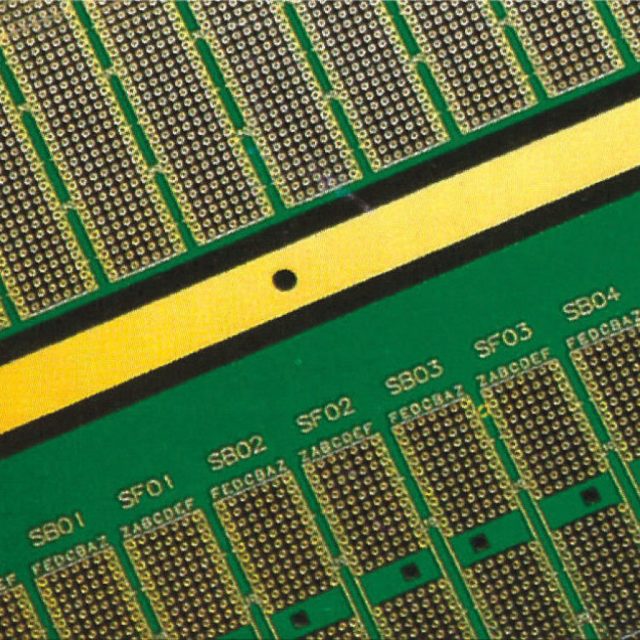

What Is a Fine Line PCB?
A Fine Line PCB refers to a board manufactured with extremely narrow trace width and spacing, typically:
- ≤100 µm (4 mil) → standard fine line
- ≤75 µm (3 mil) → advanced
- ≤50 µm (2 mil) or below → ultra-fine line
These geometries go beyond conventional PCB fabrication limits and require advanced imaging, etching, and process control.
Fine line technology is a key enabler for HDI designs, high pin count devices, and compact electronic systems.
Why Fine Line PCBs Are Needed
As component density increases, especially with fine-pitch BGAs and compact modules, routing space becomes extremely limited.
Fine line PCBs help solve this by:
- Increasing routing channels between pads
- Reducing the need for additional layers
- Supporting high pin count device breakout
- Enabling compact and lightweight designs
In many modern designs, especially in mobile, AI hardware, and high-speed systems, fine line capability determines whether a layout is feasible or not.
Manufacturing Limits: Where Reality Begins
Fine line design is heavily constrained by manufacturing capability.
Key process challenges include:
- Etching Accuracy:
Narrow traces are sensitive to over-etching and undercutting - Imaging Resolution:
Requires advanced LDI (Laser Direct Imaging) systems - Copper Thickness Control:
Thicker copper makes fine lines harder to achieve - Registration Accuracy:
Layer-to-layer alignment must be extremely precise - Yield Sensitivity:
Small defects can cause open or short circuits
Important Insight:
Designing below the manufacturer’s capability drastically reduces yield and increases cost.
Practical Design Rules (Engineer-Focused)
To successfully implement fine line PCBs, follow these proven design practices:
- Match Design to Fabrication Capability
Always confirm minimum trace/space with your manufacturer - Avoid Over-Aggressive Geometry
Don’t push to 2 mil if 3 mil works - Control Copper Thickness
Thinner copper improves fine line manufacturability - Maintain Uniform Trace Distribution
Prevent uneven etching and stress - Increase Spacing Where Possible
Even small increases improve yield significantly - Combine with HDI Techniques
Use microvias to reduce routing pressure
Golden Rule:
Just because you can design it doesn’t mean it can be manufactured reliably.
Yield, Reliability & Hidden Risks
Fine line PCBs introduce several risks if not properly controlled:
- Open Circuits:
Trace breaks due to over-etching - Short Circuits:
Insufficient spacing leads to bridging - Signal Variability:

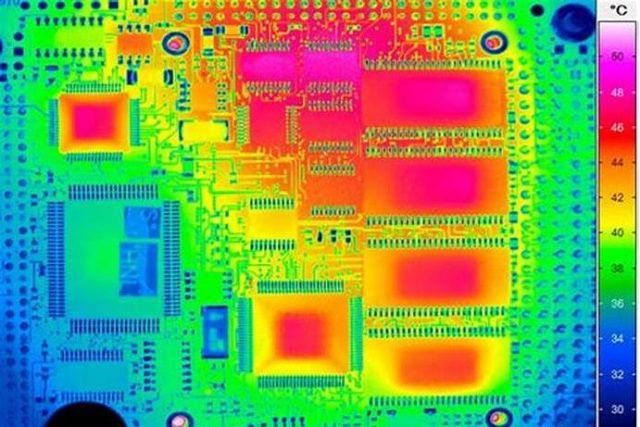

Minor geometry changes affect impedance - Electromigration Risk:
Higher current density in narrow traces - Long-Term Reliability Issues:
Thin conductors are more sensitive to thermal stress
In high-reliability applications, these risks must be carefully evaluated.
Cost vs Density: Finding the Balance
Fine line technology directly impacts cost:
Cost Drivers:
- Advanced imaging (LDI)
- Tight process control
- Lower manufacturing yield
- Increased inspection requirements
Engineering Trade-Off:
- Finer lines → higher density
- Finer lines → higher cost & risk
Smart approach:
Use fine line only where necessary, not across the entire design.
When Should You Use Fine Line PCB?
Use fine line PCBs when:
- Routing between fine-pitch BGA pads
- High pin count designs exceed standard routing capacity
- Space constraints are critical
- HDI structures alone are not sufficient
Avoid when:
- Standard trace/space meets requirements
- Cost sensitivity is high
- Manufacturing capability is limited
Final Thoughts
Fine line PCBs represent the edge of PCB manufacturing capability, enabling designers to achieve extreme density and compact layouts.
However, success depends on:
- Aligning design with real manufacturing limits
- Applying disciplined design rules
- Balancing density with yield and reliability
