As modern electronics continue to evolve toward higher power density, smaller packaging, and harsher operating environments, thermal performance has become one of the most important factors in PCB material selection. In applications such as EV power modules, IGBT and MOSFET power stages, SiC/GaN devices, and high brightness LED modules, traditional FR-4 PCBs often cannot provide sufficient heat dissipation or long-term reliability.
This is why many high-power and high-reliability designs choose Aluminum Nitride PCB (AlN PCB).

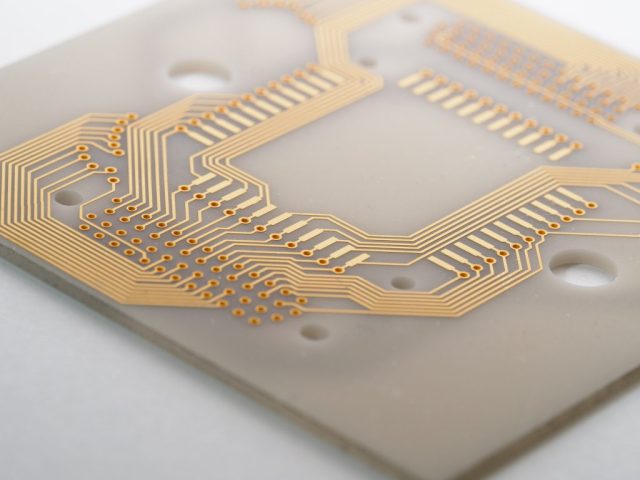

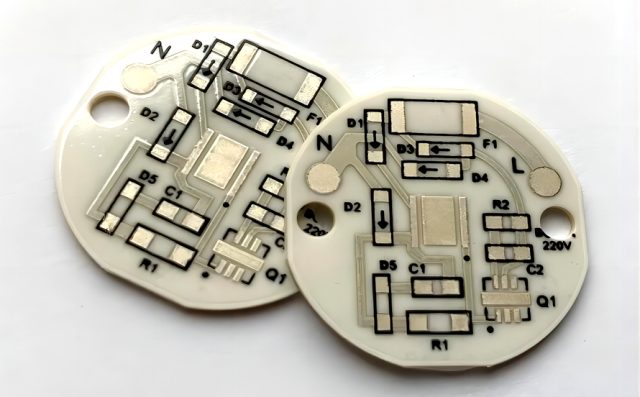

An AlN PCB is a ceramic PCB built on an aluminum nitride substrate, offering excellent thermal conductivity, strong electrical insulation, and stable performance under high temperature operation. Aluminum Nitride PCBs are widely used in advanced power electronics and thermal management systems where efficient heat transfer is critical.
What Is an Aluminum Nitride PCB (AlN PCB)?
An Aluminum Nitride PCB is a type of ceramic printed circuit board that uses AlN (Aluminum Nitride) as the base substrate. Compared to common ceramic materials such as alumina (Al₂O₃), AlN provides significantly higher thermal conductivity, making it ideal for high power density applications.
AlN PCB structures are typically manufactured using advanced ceramic PCB technologies such as:
-

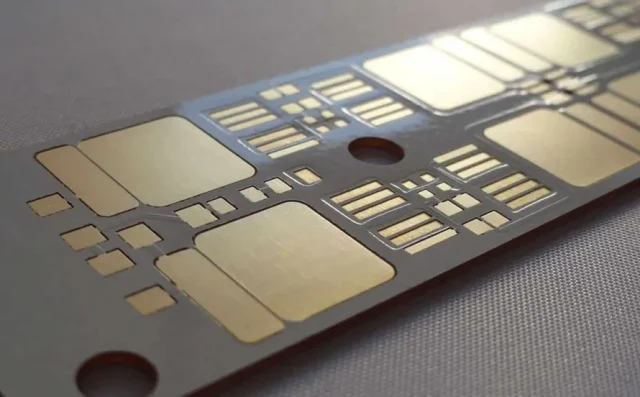

DBC AlN PCB (Direct Bonded Copper)
-
AMB AlN PCB (Active Metal Brazing)
-
Thick film and thin film ceramic circuit processes (for special applications)
These structures allow copper layers to be bonded to the aluminum nitride substrate for strong mechanical reliability, high current capacity, and excellent thermal performance.
Key Advantages of Aluminum Nitride PCB
1. Extremely High Thermal Conductivity for Heat Dissipation
The biggest advantage of Aluminum Nitride PCB is its high thermal conductivity, enabling fast and efficient heat transfer away from power components.
AlN PCB thermal benefits include:
-
Lower junction temperature for power semiconductors
-
Improved heat dissipation for compact power modules
-
Higher power density in EV and industrial systems
-
Longer lifetime and improved reliability
For high power electronics, AlN PCB is often selected as a premium thermal management PCB solution.
2. Strong Electrical Insulation for High Voltage Applications
In addition to thermal performance, Aluminum Nitride PCB provides excellent electrical insulation, supporting safe operation in high voltage environments.
AlN PCB supports:
-
High breakdown voltage and strong insulation resistance
-
Safe electrical isolation for power modules
-
Reduced risk of leakage and electrical failure
-
Stable performance in harsh industrial environments
This makes AlN PCB ideal for high voltage PCB and power electronics PCB designs.
3. High Temperature Stability and Reliability
High power applications often involve extreme temperature cycles and harsh conditions. Aluminum Nitride PCBs maintain stable mechanical and electrical properties at elevated temperatures.
AlN PCB reliability advantages include:
-
Excellent thermal cycling performance
-
Stable substrate behavior at high temperature operation
-
Reduced warpage and dimensional changes
-
Strong long-term reliability for automotive and aerospace applications
4. High Current Capability with DBC and AMB Structures
AlN PCB is commonly used with DBC or AMB copper bonding methods, enabling thick copper layers for high current applications.
This is essential for:
-
IGBT power modules
-
SiC/GaN power device packaging
-
EV inverters and converters
-
Industrial motor drives and high power converters
Common Applications of Aluminum Nitride PCB
Aluminum Nitride PCB is widely used in industries that require high thermal conductivity and high reliability:
-
IGBT power modules and power conversion circuits
-
SiC power modules and GaN power devices
-
EV inverters, onboard chargers, and DC-DC converters
-
High power LED lighting modules and LED drivers
-
Laser diode modules and optical communication systems
-
Aerospace and defense power electronics
-
Industrial motor control and power supplies
-
High temperature sensors and high reliability electronics
AlN PCB is especially valuable in high power modules where thermal management directly impacts performance and lifetime.
Aluminum Nitride PCB vs Alumina PCB (Al₂O₃ PCB)
Both Aluminum Nitride and Alumina are common ceramic PCB materials, but they serve different design priorities.
Why Choose Aluminum Nitride PCB
-
Higher thermal conductivity for maximum heat dissipation
-
Better performance for high power density designs
-
Ideal for advanced EV and SiC/GaN applications
Why Choose Alumina PCB
-
More cost-effective for general ceramic PCB applications
-
Good insulation and stable mechanical performance
-
Suitable for medium power LED modules and industrial circuits
When thermal performance is the main concern, Aluminum Nitride PCB is often the preferred choice.
Design Considerations for AlN PCB
To achieve optimal performance, designers should focus on:
1. Copper Thickness and Thermal Path Design
Copper thickness impacts both current capacity and heat spreading. Proper copper design helps maximize AlN PCB heat dissipation.
2. Pad Layout and Heat Spreading
Large copper pads, optimized thermal paths, and proper component placement help reduce hotspots.
3. Mechanical Stress and Thermal Expansion
Even with excellent stability, high power modules require attention to thermal expansion matching and assembly stress control.
4. Surface Finish and Assembly Compatibility
Selecting the right surface finish and soldering process ensures reliable assembly and long-term performance.
AlN PCB Manufacturing Considerations
Manufacturing Aluminum Nitride PCB requires strict process control and specialized ceramic PCB capability, including:
-
Reliable DBC or AMB bonding processes
-
High quality copper adhesion and uniformity
-
Precise patterning for thick copper circuits
-
Strict inspection for insulation resistance and thermal performance
-
Reliability testing for thermal cycling and high voltage operation
Choosing an experienced AlN PCB manufacturer helps ensure stable quality and consistent production performance.
Conclusion: Aluminum Nitride PCB for High Power Thermal Management
Aluminum Nitride PCB (AlN PCB) is a premium ceramic PCB solution for high power and high reliability applications. With excellent thermal conductivity, strong electrical insulation, and stable high temperature performance, AlN PCB is widely used in IGBT modules, SiC/GaN power electronics, EV inverters, LED modules, and aerospace systems.
If you are looking for Aluminum Nitride PCB manufacturing, DBC AlN PCB fabrication, or high reliability ceramic substrate solutions, KKPCB can provide engineering support, stable production, and strict quality control for your project.
