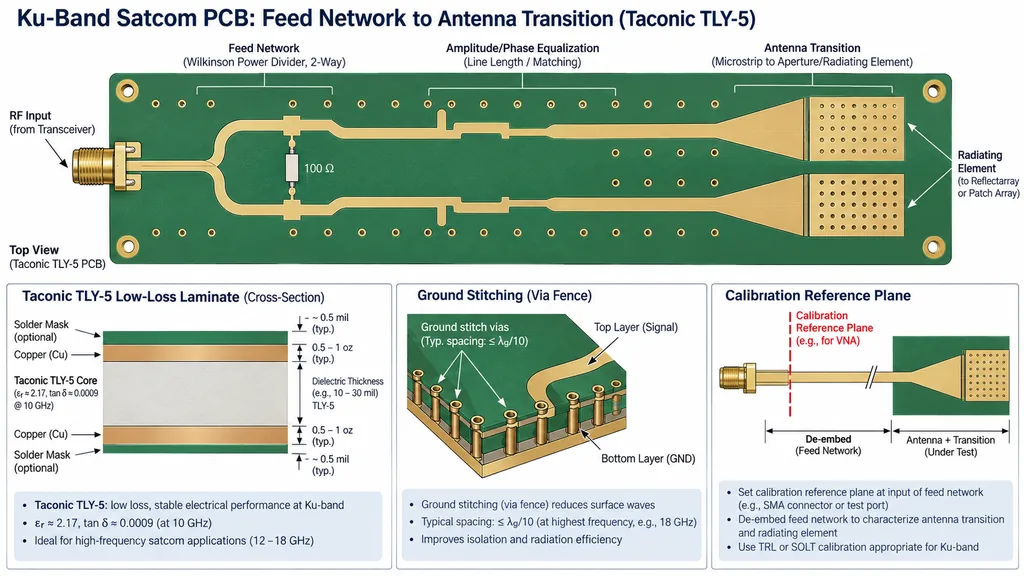

Taconic TLY-5 PCB satcom feed design is won or lost at the interface between the laminate, connector, ground return, and antenna or filter network. A low-loss, low-Dk material can support a compact Ku-band path, but only if the finished stackup and feed datum survive fabrication, assembly, and calibration. The program risk is a feed that looks correct in CAD yet needs repeated tuning when it reaches the chamber or bench.
Table of Contents
Make the feed datum the layout origin
Dimension connector face, antenna or filter interface, signal pad, anti-pad, and ground-via fence from one mechanical datum. Taconic TLY-5 PCB routing should preserve that reference through edge routing and assembly. The RF PCB design RF PCB design package can then align the feed drawing, stackup, and calibration plane instead of allowing each team to use a different origin.
Budget phase through the complete path
Allocate phase to dielectric thickness, line length, copper profile, connector placement, fixture, and calibration repeatability. Taconic TLY-5 PCB typical Dk and Df values are useful starting points, but finished dielectric targets should drive the released model. The PCB manufacturing controlled-impedance PCB review should list calculated targets separately from measured feed data.

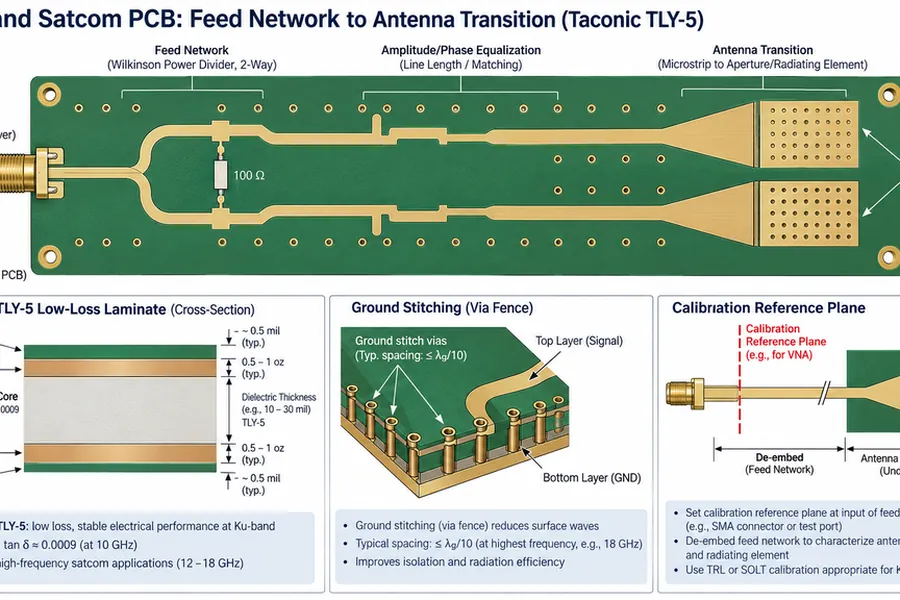

Keep ground stitching continuous at transitions
A feed network often crosses connector, filter, and shield boundaries. Gaps in return vias or plane clearances can create a larger discontinuity than the signal trace itself. Taconic TLY-5 PCB via geometry should be checked in cross-section. The RF PCB materials manufacturing traveler should carry drill class, anti-pad, registration, and inspection datum together.
Protect the feed during assembly
Connector torque, solder fillet, shield attachment, cleaning, and rework can move the feed reference plane. Taconic TLY-5 PCB documentation should identify phase-critical pads and no-touch areas. The controlled-impedance PCB assembly handoff should define coplanarity, placement tolerance, inspection, and rework disposition before the first satcom prototype.
Release feed evidence with the board revision
Freeze stackup, connector, coupon, fixture, calibration, and acceptance windows as one revision. Taconic TLY-5 PCB data should label typical values, targets, and measured outcomes. The PCB assembly high-frequency PCB release can then compare a feed change with a material or assembly change without losing traceability.
A satcom feed release should join RF geometry, mechanical datum, panel evidence, connector assembly, and calibration. That gives the team a stable reference as an evaluation board moves toward an integrated terminal or payload.
Project evidence and handoff for Taconic TLY-5 PCB satcom feed
For a satcom feed, keep the connector datum, antenna or filter interface, ground-via pattern, phase allocation, fixture, calibration plane, and environmental assumption in one revision. This is the minimum evidence needed before an evaluation board is compared with a terminal-level feed. The Taconic TLY-5 PCB drawing should make the critical datum visible to layout, fabrication, assembly, and test. If a number is calculated, retain the assumptions; if it is a supplier typical, keep it labeled as typical; if it is a measured acceptance value, keep the sample, method, and revision traceable.
| Release item | Engineering question | Evidence to retain |
|---|---|---|
| Stackup and material | Does the finished construction match the RF model? | Finished dielectric target, copper assumption, material lot, cross-section |
| Transition or critical path | Is the mechanical datum also the electrical datum? | Launch drawing, via or pad dimensions, mask and connector inspection |
| Process witness | Does the coupon represent the product feature? | Panel position, layer pair, finish, drill and impedance record |
| Assembly and test | Could placement, rework, or calibration move the result? | Placement tolerance, reflow or rework history, fixture and reference plane |
For program control, use a short disposition statement after each build: what passed, what moved, what is still a target, and which owner decides the next change. This keeps the Taconic TLY-5 PCB satcom feed discussion focused on evidence and prevents a new material, finish, or layout change from being introduced without an updated model and acceptance plan.
Sources: Taconic and Rogers typical material data; IPC-TM-650 methods relevant to dielectric, copper, drilling, plating, registration, and impedance; RF application guidance from Qorvo, Analog Devices, and Würth Elektronik; KKPCB PCB design, materials, manufacturing, assembly, and high-frequency capability pages. Values are typical, target, or calculated references unless explicitly identified as measured.
