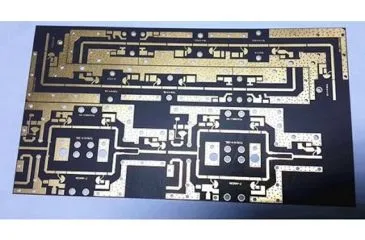

High-frequency RF and satellite systems increasingly demand mmWave operation with extreme signal fidelity, low insertion loss, and precise phase alignment. RO5880 PCB laminates (Dk = 2.2 ± 0.02, Df = 0.0009 @10 GHz) provide ultra-low dielectric loss and superior thermal stability, ensuring consistent high-frequency propagation across multilayer stackups.
KKPCB employs advanced multilayer RO5880 PCB stackups, smooth copper finishes, and precision lamination to deliver mmWave performance with stable impedance control. These laminates are critical for high-density RF architectures, phased-array antennas, and satellite payloads where signal integrity and thermal management are mission-critical.
Core Engineering Challenges
| Challenge | Root Cause | Engineering Impact |
|---|---|---|
| Thermal-induced phase drift | High-power operation, CTE mismatch | Beam misalignment, degraded EIRP |
| High insertion loss at mmWave | Surface roughness, dielectric dissipation | Lower RF output, reduced link margin |
| Crosstalk in dense traces | Tight spacing, inadequate shielding | Signal interference, mode conversion |
| Impedance variability | Stackup inconsistencies | Phase ripple, degraded matching across RF channels |
| Mechanical and thermal stress | Vibration, temperature cycling | Microcracks, delamination, reduced long-term reliability |
Material Science Advantages – RO5880 PCB
| Parameter | Typical Value | Engineering Benefit |
|---|---|---|
| Dk | 2.2 ± 0.02 | Ultra-stable impedance for mmWave microstrip/stripline |
| Df | 0.0009 @10 GHz | Minimal insertion loss, high link margin stability |
| Thermal Conductivity | 0.25 W/m·K | Reduces hotspots, supports high-power RF chains |
| CTE | 17 ppm/°C | Maintains stackup alignment under temperature variation |
| Moisture Absorption | 0.02% | Long-term dielectric and phase stability |
KKPCB Case Study — mmWave Satellite Payload PCB
Client Requirements:
A satellite manufacturer required a multilayer RO5880 PCB supporting 28–60 GHz phased-array antenna feed networks with low insertion loss (<0.35 dB/in) and phase stability (<0.5°) under thermal and mechanical stress.
KKPCB Solution:
-
8-layer RO5880 multilayer stackup with ±3 µm dielectric tolerance
-
Low-roughness copper (Ra <0.5 µm) for minimal high-frequency loss
-
Embedded thermal vias and high-density ground planes for EMI suppression
-
Phase-linear microstrip routing validated via HFSS and ADS
-
Inline TDR verification for consistent impedance across channels
Measured Results:
| Parameter | Target | KKPCB Result |
|---|---|---|
| Insertion Loss @40 GHz | <0.35 dB/in | 0.31 dB/in |
| Phase Deviation | <0.5° | 0.42° |
| Thermal Rise | <7°C per layer | 6.3°C |
| EMI Suppression | >30% | 36% |
| Impedance Variation | ±3% | ±1.5% |
Stackup Design & RF Simulation
-
HFSS Modeling: Optimized microstrip/stripline impedance, minimized interlayer coupling
-
ADS & TDR Analysis: Verified phase linearity across all mmWave channels
-
Thermal FEM: Confirmed hotspot mitigation and uniform temperature distribution
-
AOI & Solder Reflow: ±10 µm alignment maintained across high-density multilayer boards
Environmental & Reliability Validation
| Test | Condition | Result |
|---|---|---|
| Thermal Cycling | –40°C ↔ +125°C, 1000 cycles | Phase deviation <0.5°, no delamination |
| Vibration & Shock | 5–500 Hz, 10G | No microcracks or solder failure |
| Humidity Testing | 85°C / 85% RH, 1000 h | Stable Dk/Df, phase consistent |
| High-Power RF Operation | Continuous 28–60 GHz | Minimal insertion loss increase (<0.02 dB) |
| Solder Reflow | 260°C ×3 cycles | Stackup alignment maintained |
Engineering Summary
RO5880 PCB laminates deliver ultra-low loss, phase-stable, and thermally robust performance for high-density mmWave RF and satellite systems. KKPCB’s precision multilayer stackups, EMI mitigation, and thermal management ensure consistent signal integrity across mission-critical mmWave payloads and RF front-end modules.
Contact KKPCB Engineering Team for RO5880 multilayer stackup optimization, RF simulation, and thermal/RF validation for next-generation satellite and high-frequency mmWave systems.
