In RF, microwave, and high-speed electronic systems, signal loss directly affects performance, efficiency, and reliability. Choosing a professional low loss high frequency PCB supplier is critical for ensuring stable signal transmission, accurate impedance control, and consistent manufacturing quality.
A qualified low loss high frequency PCB supplier delivers not only advanced materials, but also RF-focused engineering support and reliable production capability from prototype to volume manufacturing.

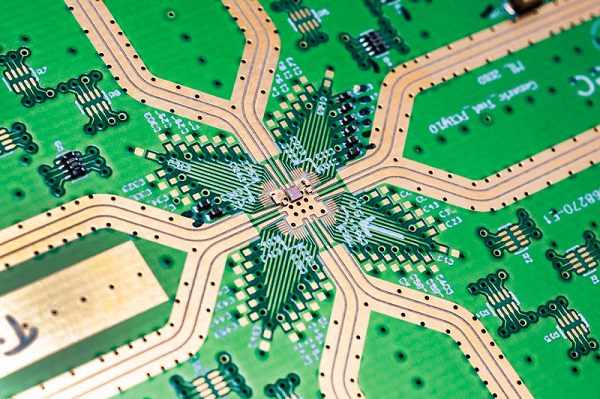

What Is a Low Loss High Frequency PCB?
A low loss high frequency PCB is designed using specialized laminate materials with low dielectric constant (Dk) variation and extremely low dissipation factor (Df). These characteristics significantly reduce signal attenuation at high frequencies.
Compared with standard FR-4, low loss high frequency PCBs provide:
-
Lower insertion loss
-
Improved signal integrity
-
Better phase stability
-
More accurate impedance control
Materials Supported by a Low Loss High Frequency PCB Supplier
A professional low loss high frequency PCB supplier offers a wide range of RF and microwave materials, including:
-
Rogers RO4003, RO4350, RO3003 series
-
Taconic RF-35, TLY, and CER series
-
PTFE-based laminates (Duroid 5880, 5870)
-
Hybrid stackups combining RF materials with FR-4
Material selection is optimized based on frequency, cost, and application requirements.
Why Choose a Low Loss High Frequency PCB Supplier?
Ultra-Low Signal Loss Control
Low Df materials and optimized copper profiles reduce dielectric and conductor loss at high frequencies.
Precise Controlled Impedance Manufacturing
A reliable low loss high frequency PCB supplier maintains impedance tolerances of ±5% or tighter for RF and high-speed designs.
RF-Focused Manufacturing Processes
Specialized fabrication techniques are required to handle PTFE and ceramic-filled materials without compromising performance.
Consistent Quality and Yield
Strict in-process inspection and electrical testing ensure stable performance across production batches.

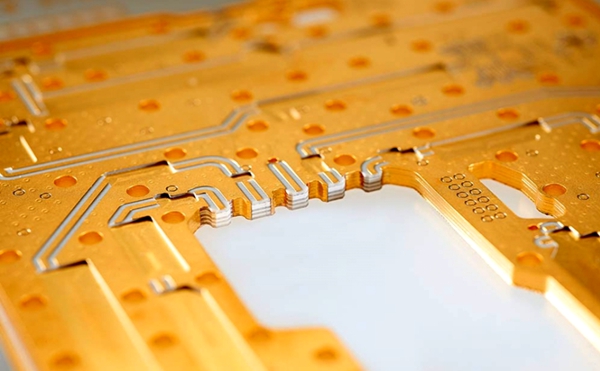

Manufacturing Capabilities for Low Loss High Frequency PCBs
A qualified low loss high frequency PCB supplier provides:
-
Fine-line etching for RF traces
-
Smooth copper surface control
-
Accurate lamination thickness control
-
Advanced drilling and via plating
-
TDR impedance testing and electrical inspection
These capabilities ensure reliable high-frequency performance.

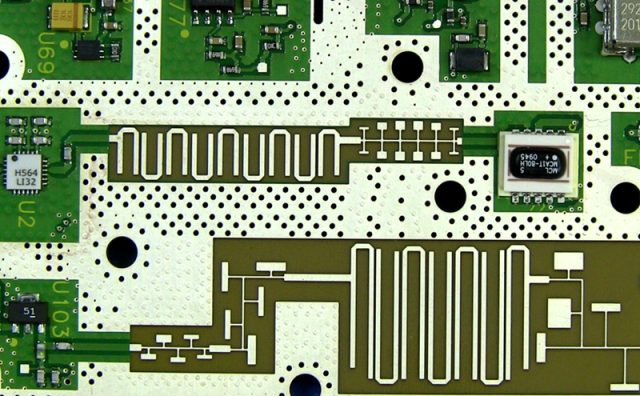

Applications of Low Loss High Frequency PCBs
Low loss high frequency PCBs are widely used in:
-
RF front-end modules
-
Microwave communication systems
-
5G and mmWave devices
-
Automotive radar and ADAS
-
High-speed networking and data centers
Each application requires minimal signal attenuation and stable impedance.
Prototype to Mass Production Support
A professional low loss high frequency PCB supplier supports:
-
Rapid PCB prototyping
-
Small batch and pilot production
-
Engineering validation and DFM optimization
-
Scalable mass production
This ensures smooth transition from development to commercial production.
How to Select the Right Low Loss High Frequency PCB Supplier
When evaluating a low loss high frequency PCB supplier, consider:
-
Experience with RF and microwave materials
-
Impedance modeling and testing capability
-
Manufacturing equipment and process control
-
Quality certifications and delivery reliability
-
Engineering communication and technical support
The right supplier minimizes risk and improves long-term product success.
Conclusion
Partnering with a professional low loss high frequency PCB supplier is essential for achieving reliable RF, microwave, and high-speed performance. With advanced low-loss materials, precise impedance control, and RF-focused manufacturing processes, low loss high frequency PCBs deliver superior signal integrity and production consistency.
Choosing the right supplier ensures your high-frequency PCB projects meet performance, quality, and scalability requirements from prototype to mass production.
