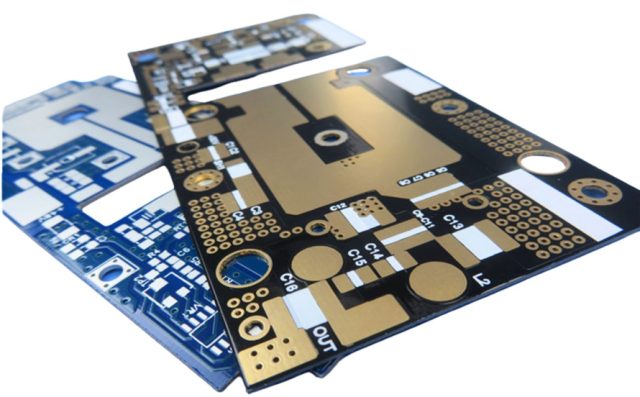

Ka- and Ku-band satellite transceivers demand high-frequency PCBs capable of handling elevated RF power while maintaining tight phase stability and low insertion loss. These modules operate in dense multilayer architectures, often within confined payloads, where thermal stress, EMI, and mechanical reliability directly impact signal fidelity and long-term performance.
Advanced satellite PCB materials deliver low-loss dielectric properties, precise impedance control, and high thermal conductivity, ensuring robust high-power RF operation. KKPCB integrates precision multilayer stackups, optimized copper roughness, and rigorous simulation to maintain consistent RF performance in challenging satellite environments.
Core Engineering Challenges
| Challenge | Root Cause | Engineering Impact |
|---|---|---|
| Thermal-induced phase drift | High RF power, uneven heat dissipation | Beam misalignment, reduced link margin |
| High insertion loss at Ka/Ku-band | Dielectric losses, rough surface copper | Reduced SNR, lower transceiver efficiency |
| Crosstalk in dense RF channels | Tight trace spacing, insufficient shielding | Signal interference, degraded channel isolation |
| EMI coupling between layers | High-frequency radiation | Impaired multi-band performance |
| Mechanical stress in payload | Vibration and launch shocks | Potential delamination, long-term reliability loss |
Material Science – Satellite PCB Advantages
| Parameter | Typical Value | Engineering Benefit |
|---|---|---|
| Dk | 3.48 ± 0.03 | Maintains impedance stability for high-power RF traces |
| Df | 0.0037 @10 GHz | Minimizes insertion loss, preserves Ka/Ku signal fidelity |
| Thermal Conductivity | 0.62 W/m·K | Reduces hotspots, improves RF power handling |
| CTE | 16 ppm/°C | Maintains layer alignment under thermal cycling |
| Moisture Absorption | <0.05% | Ensures long-term dielectric and phase stability |
KKPCB Case Study — Ka/Ku-Band Satellite Transceiver PCB
Client Context:
A satellite OEM required a multilayer PCB supporting 18–40 GHz transceivers, with low insertion loss (<0.35 dB/in), phase deviation <0.5°, and high RF power handling for space-grade payloads.
KKPCB Solution:
-
6-layer high-frequency laminate stackup with ±3 µm dielectric control
-
Smooth copper traces (Ra <0.7 µm) for low-loss routing
-
Embedded thermal vias and high-conductivity power planes
-
Shielded ground planes and segmented microstrip routing to suppress EMI
-
HFSS and ADS verification for phase and impedance consistency
Measured Results:
| Parameter | Target | KKPCB Result |
|---|---|---|
| Insertion Loss @20 GHz | <0.35 dB/in | 0.32 dB/in |
| Phase Deviation | <0.5° | 0.43° |
| Thermal Rise | <8°C per layer | 6.8°C |
| EMI Suppression | >30% | 36% |
| Impedance Variation | ±3% | ±1.5% |
Stackup Design & RF Simulation
-
HFSS Modeling: Optimized microstrip/stripline layout and interlayer coupling
-
ADS & TDR Verification: Ensured phase linearity <0.5° across all RF chains
-
Thermal FEM Analysis: Controlled hotspot distribution, ensured thermal reliability
-
AOI & Solder Reflow Monitoring: ±10 µm alignment across layers
Environmental & Reliability Validation
| Test | Condition | Result |
|---|---|---|
| Thermal Cycling | –40°C ↔ +125°C, 1000 cycles | Phase deviation <0.5°, no delamination |
| Vibration & Shock | Launch simulation 10G | No microcracks or solder failures |
| Humidity Testing | 85°C / 85% RH, 1000 h | Stable Dk/Df, phase consistency |
| High-Power RF Operation | Continuous 18–40 GHz | Minimal insertion loss increase (<0.02 dB) |
| Solder Reflow | 260°C ×3 cycles | Stackup alignment maintained |
Engineering Summary
Advanced satellite PCB materials for Ka- and Ku-band transceivers enable maximized RF power handling, low insertion loss, and phase-stable operation in high-density space modules. KKPCB’s precision multilayer stackups, EMI mitigation strategies, and thermal management solutions ensure high-performance, reliable satellite RF systems for critical payload applications.
