With the continuous development of smartphones toward higher performance, smaller size, and increased functionality, mobile phone PCB design has become more complex than ever. Modern smartphones integrate high-speed processors, RF communication modules, cameras, sensors, power management circuits, and high-density interconnect structures within extremely limited space.

However, increasing circuit density and operating frequencies also introduce greater challenges related to electromagnetic interference (EMI) and electromagnetic compatibility (EMC).

Poor EMC design may lead to:

• Wireless signal degradation
• Communication interference
• Touchscreen malfunction
• Audio noise
• Reduced battery efficiency
• Failure to pass regulatory certification

Therefore, EMC design must be considered throughout the entire mobile phone PCB development process, from schematic design and stack-up planning to PCB layout and manufacturing.

1. Understanding EMC and EMI in Mobile Phone PCB Design

What Is Electromagnetic Compatibility (EMC)?

Electromagnetic compatibility refers to the ability of an electronic device to operate correctly in its electromagnetic environment without causing unacceptable interference to other devices.

EMC includes two major aspects:

Electromagnetic Interference (EMI)

EMI refers to unwanted electromagnetic energy generated by electronic circuits that may affect nearby components or external devices.

Sources of EMI in mobile phones include:

• High-speed processors
• Clock signals
• Switching power supplies
• RF transmit circuits
• High-speed memory interfaces

Electromagnetic Susceptibility (EMS)

EMS describes a device’s ability to withstand external electromagnetic disturbances without malfunction.

A well-designed mobile phone PCB must both reduce emissions and improve immunity.

2. Main Sources of Electromagnetic Interference in Mobile Phone PCBs

Mobile phone PCBs contain multiple high-frequency circuits operating simultaneously, creating potential EMI risks.

High-Speed Digital Circuits

Modern processors and memory interfaces operate at high frequencies with fast switching edges.

Common EMI sources include:

• CPU clock signals
• DDR memory interfaces
• High-speed serial communication
• Display interfaces

Rapid voltage transitions generate high-frequency harmonic components that can radiate through PCB traces.

RF Communication Circuits

Mobile phones contain multiple wireless systems:

• Cellular communication
• Wi-Fi
• Bluetooth
• GPS
• NFC

RF circuits require strict isolation because unwanted coupling may affect transmission performance and receiver sensitivity.

Power Management Circuits

Switching regulators generate electromagnetic noise due to rapid current changes.

Potential issues include:

• Power ripple
• Conducted noise
• Radiation from current loops

Proper power layout is essential for reducing interference.

3. PCB Stack-Up Design for EMC Performance

A well-designed PCB stack-up provides a foundation for electromagnetic control.

Use Continuous Reference Planes

Ground planes provide low-impedance return paths for high-frequency currents.

Benefits include:

• Reduced electromagnetic radiation
• Improved signal integrity
• Lower crosstalk

For multilayer mobile phone PCBs, dedicated ground layers are commonly used to improve EMC performance.

Signal Layer Arrangement

High-speed signals should be routed close to reference planes to minimize loop areas.

Recommended practices include:

• Avoid routing sensitive signals across split planes
• Keep high-speed traces adjacent to ground references
• Separate RF and digital signal layers when possible

Layer Isolation

Different functional areas should be properly isolated:

• RF circuits
• Analog circuits
• Digital circuits
• Power circuits

This prevents unwanted electromagnetic coupling between sensitive blocks.

4. Grounding Design Techniques

Grounding is one of the most important factors in mobile phone EMC design.

Minimize Ground Loop Areas

Large current loops can become antennas and increase electromagnetic radiation.

Design methods include:

• Short return paths
• Compact current loops
• Proper component placement

Ground Via Stitching

Ground vias can connect multiple ground layers and improve electromagnetic shielding.

Applications include:

• RF circuit isolation
• Shield boundary reinforcement
• High-speed signal return path improvement

Separate and Connect Functional Grounds Properly

Although different circuits may require different grounding strategies, they should ultimately maintain a controlled reference potential.

Incorrect grounding methods can cause:

• Noise coupling
• Signal instability
• Increased EMI emissions

5. Power Distribution Network (PDN) Optimization

Power integrity directly affects EMC performance.

Reduce Switching Noise

Power circuits should minimize high-frequency current loops by:

• Placing decoupling capacitors close to IC power pins
• Reducing capacitor connection length
• Using proper grounding vias

Optimize Power Plane Design

A good power distribution network provides:

• Stable voltage supply
• Reduced noise propagation
• Lower electromagnetic radiation

Manage High-Current Paths

Power amplifier and charging circuits require careful routing to avoid interference with sensitive circuits.

6. RF Circuit EMC Design Considerations

RF sections require special attention due to their sensitivity and high operating frequencies.

RF Circuit Isolation

RF components should be physically separated from noisy digital circuits.

Common methods include:

• Dedicated RF zones
• Ground barriers
• Shielding structures

Transmission Line Control

RF traces should maintain:

• Controlled impedance
• Consistent trace geometry
• Proper reference planes

Impedance discontinuities can cause signal reflections and increase unwanted radiation.

Antenna Layout Optimization

The antenna area is highly sensitive to PCB design.

Important considerations include:

• Keep antenna clearance zones free from copper
• Avoid placing noisy circuits near antennas
• Maintain proper grounding structure

Poor antenna integration may reduce wireless performance.

7. Shielding Design for Mobile Phone PCBs

Shielding is widely used in smartphones to control electromagnetic radiation.

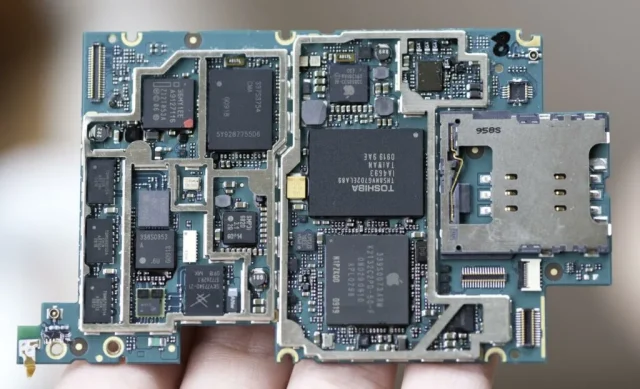

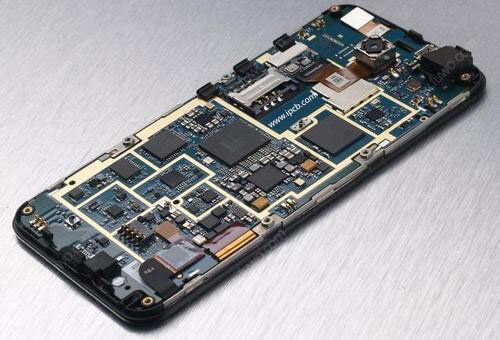

Metal Shielding Covers

Shield cans are commonly used to protect:

• RF modules
• Power management circuits
• Sensitive analog components

They reduce electromagnetic coupling between circuit blocks.

Conductive Materials

Conductive shielding materials can be applied to:

• PCB surfaces
• Device enclosures
• Component areas

These materials help block electromagnetic radiation.

8. PCB Layout Rules for EMC Improvement

Good PCB layout practices can significantly improve EMC performance.

Component Placement

Recommended placement strategy:

• Place critical components first
• Separate noisy and sensitive circuits
• Minimize high-frequency signal paths

Trace Routing

Avoid:

• Long parallel high-speed traces
• Sharp routing angles
• Excessive via transitions

Use:

• Short routing paths
• Differential pair routing
• Controlled impedance structures

Clock Signal Management

Clock signals are strong EMI sources.

Design considerations include:

• Minimize clock trace length
• Add proper termination
• Avoid routing near RF circuits

9. EMC Testing and Verification

EMC performance should be verified through simulation and testing.

Electromagnetic Simulation

Simulation tools can analyze:

• Current distribution
• Radiation behavior
• Crosstalk
• Signal integrity

Early simulation helps identify design risks before production.

EMC Testing Methods

Common tests include:

Radiated Emission Testing

Measures electromagnetic radiation from the device.

Conducted Emission Testing

Evaluates noise transmitted through power and signal connections.

Immunity Testing

Determines whether the device can operate normally under external electromagnetic disturbances.

10. Manufacturing Considerations for EMC Reliability

PCB manufacturing variation can influence EMC performance.

Important factors include:

• Layer alignment accuracy
• Copper thickness consistency
• Impedance control
• Via reliability
• Material selection

For high-density mobile phone PCBs, advanced manufacturing processes such as HDI technology and microvias are often required to achieve compact layouts while maintaining EMC performance.

Future Trends of Mobile Phone PCB EMC Design

As smartphones continue evolving, EMC design challenges will increase due to:

• Higher processing speeds
• More wireless frequency bands
• Smaller PCB sizes
• Increased integration

Future EMC solutions will focus on:

• Advanced RF materials
• AI-assisted simulation
• Improved shielding technologies
• More precise PCB manufacturing
• Advanced HDI structures

Conclusion

Electromagnetic compatibility design is a critical part of mobile phone PCB development. Effective EMC performance requires a combination of proper PCB stack-up design, grounding strategies, power integrity optimization, RF isolation, shielding techniques, and manufacturing control.

By considering EMC requirements from the early design stage, engineers can reduce electromagnetic interference, improve wireless performance, and achieve more reliable smartphone products.

As mobile devices continue becoming smaller and more powerful, EMC optimization will remain a key factor in next-generation PCB design.
