Engineering Context
FR4 rigid PCB and rigid-flex PCB are two widely used PCB technologies, but they are designed for substantially different mechanical and electrical requirements. A conventional FR4 Rigid PCB provides a stable, mechanically robust platform for components, connectors, power circuits, and multilayer signal routing. A Rigid-Flex PCB, in contrast, combines rigid PCB sections with flexible circuit sections, allowing electrical connections to pass through bends, folds, or mechanically constrained areas without using separate cables or connectors.
The difference is not simply whether a PCB can bend. The material system, stackup, copper construction, mechanical design, bending radius, lamination process, and reliability requirements are all different.
A conventional FR4 rigid board normally uses woven glass reinforcement and epoxy resin to create a mechanically stable laminate. It is widely used in industrial control systems, computers, consumer electronics, automotive electronics, power supplies, and communication equipment.
Rigid-flex construction combines rigid FR4 or high-performance rigid materials with flexible polyimide-based circuit sections. This allows designers to replace wire harnesses, reduce connectors, save internal space, and improve system integration.
For engineers, the choice between FR4 rigid and rigid-flex should therefore be based on the product’s mechanical movement, available installation space, reliability requirements, signal integrity, production volume, and total system cost rather than PCB price alone.
KKCPB supports both FR4 rigid and rigid-flex PCB manufacturing, including prototype development, multilayer fabrication, controlled impedance structures, HDI technology, component assembly, and engineering DFM review.
Core Engineering Challenges
The most important difference between FR4 rigid and rigid-flex PCB technology appears during mechanical and electrical design.
| Engineering Factor | FR4 Rigid PCB | Rigid-Flex PCB |
|---|---|---|
| Mechanical Structure | Fully rigid | Rigid and flexible sections |
| Main Flexible Material | Not required | Polyimide-based flexible dielectric |
| Bending Capability | Not designed for bending | Designed for controlled bending |
| Installation | Requires connectors or cables when sections are separated | Can integrate multiple PCB sections |
| Mechanical Reliability | High under static conditions | High when bend radius is properly controlled |
| Manufacturing Complexity | Relatively straightforward | More complex |
| Initial PCB Cost | Generally lower | Generally higher |
| Space Efficiency | Moderate | Excellent |
| Weight Reduction | Limited | Significant |
| Typical Application | Industrial control, computers, power electronics | Wearables, medical devices, automotive modules, cameras |
Mechanical Stress
A rigid FR4 PCB is designed to maintain its shape. Applying repeated bending force can cause copper cracking, solder joint damage, or laminate failure.
Rigid-flex PCBs are specifically designed around controlled bending. However, the flexible section still has a defined minimum bend radius. Excessive bending can damage copper traces and reduce flexing cycles.
Electrical Performance
Both technologies can support high-speed and controlled impedance designs, but the dielectric structure differs.
An FR4 rigid PCB typically provides predictable multilayer impedance through controlled dielectric thickness and copper geometry. A rigid-flex PCB requires additional consideration of the flexible dielectric thickness, coverlay, copper type, and transition between rigid and flexible sections.
Manufacturing Complexity
Rigid-flex fabrication requires additional processes such as flexible material preparation, coverlay processing, stiffener integration, controlled lamination, and rigid-to-flex transition management.
Consequently, the engineering design review must begin before fabrication rather than treating rigid-flex as a conventional FR4 PCB with a flexible area added afterward.
Material Science & Dielectric Performance

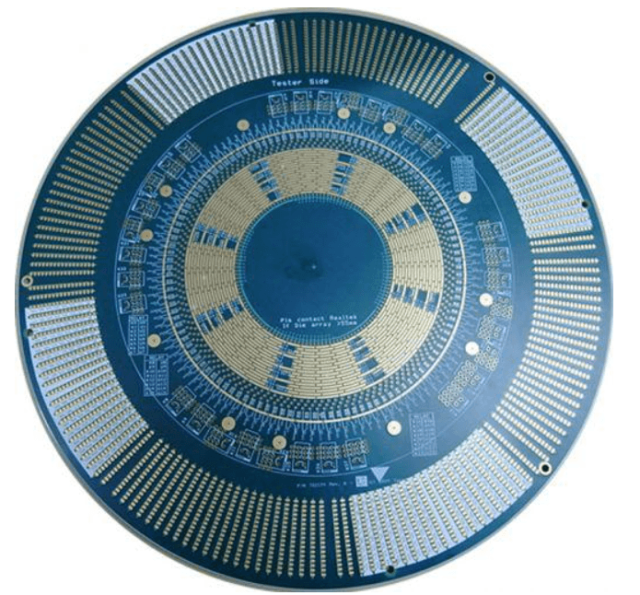

FR4 Rigid PCB
FR4 remains one of the most widely used PCB substrate systems because it provides a good balance of:
- Mechanical strength
- Electrical insulation
- Thermal stability
- Manufacturability
- Cost
For standard multilayer applications, high-TG FR4 can provide improved thermal performance compared with conventional FR4.
Rigid-Flex PCB Materials
Rigid-flex boards generally combine rigid laminate with flexible polyimide-based materials.
The flexible section must withstand mechanical deformation while maintaining electrical continuity. Copper selection is particularly important because rolled annealed copper is commonly used when repeated flexing performance is required.
| Material Parameter | FR4 Rigid PCB | Rigid-Flex PCB |
| Rigid Dielectric | FR4 / High-TG FR4 | FR4 or specialized rigid laminate |
| Flexible Dielectric | Not applicable | Polyimide |
| Copper | Electrodeposited or other PCB copper | Often rolled annealed copper in flex areas |
| Mechanical Function | Structural support | Structural support plus controlled bending |
| Thermal Performance | Good for general electronics | Depends on rigid and flexible material combination |
| Dimensional Stability | High | Requires additional flex-region control |
| Flexing Capability | Not designed for repeated bending | Designed for specified bending conditions |
The dielectric constant and dissipation factor should also be considered when the board carries high-speed or RF signals. For controlled impedance PCB designs, the transition between rigid and flexible sections must be included in the electrical analysis.
When Should Engineers Choose FR4 Rigid PCB?
FR4 rigid PCB is normally the preferred solution when the product does not require continuous mechanical movement or three-dimensional folding.
Typical applications include:
- Industrial control boards
- Power supply PCBs
- Computer motherboards
- Networking equipment
- Industrial IoT controllers
- Motor control systems
- Communication equipment
- Automotive control modules
The main advantages are manufacturing maturity, cost efficiency, mechanical strength, and broad component assembly compatibility.
For a product with a relatively simple mechanical structure, using rigid FR4 can avoid the additional manufacturing complexity associated with rigid-flex construction.
When Should Engineers Choose Rigid-Flex PCB?
Rigid-flex becomes attractive when the PCB must occupy a three-dimensional mechanical structure or connect multiple electronic sections without conventional cable assemblies.
Typical applications include:
- Medical instruments
- Automotive cameras
- Robotics
- Wearable electronics
- Aerospace electronics
- Compact consumer electronics
- Foldable electronic products
- High-density sensor systems
The main system-level advantage is that the PCB itself becomes part of the interconnection architecture.
Instead of:
PCB + connector + cable + connector + PCB
a rigid-flex design can provide:
Rigid PCB + integrated flexible interconnection + rigid PCB
This can reduce connectors, assembly operations, cable routing, and potential points of failure.
KKCPB Case Study — Rigid-Flex PCB for Automotive Camera Sensor Module
Client & Application Context
An automotive electronics manufacturer required a compact PCB assembly for a surround-view camera module used in an advanced driver assistance system.
The camera module was installed in a constrained enclosure where the main control circuit and image sensor section were positioned at different mechanical angles.
The original architecture used two rigid FR4 PCBs connected by a small cable assembly.
The customer wanted to reduce assembly space and improve long-term connection reliability.
Engineering Problem
The conventional rigid PCB solution created several issues:
- Limited internal installation space
- Additional connectors increased assembly height
- Cable routing interfered with the camera housing
- Connector vibration resistance was a concern
- Manual cable assembly increased production variation
The mechanical design required the circuit to pass around a curved enclosure section while maintaining high-speed image signal integrity.
KKCPB Solution
KKCPB proposed a rigid-flex PCB architecture consisting of two rigid FR4 sections connected through a polyimide flexible section.
The engineering solution included:
- High-TG FR4 rigid sections
- Polyimide flexible dielectric
- Controlled flexible copper routing
- Reinforced rigid-to-flex transition zones
- Defined minimum bend radius
- Controlled impedance for high-speed camera signals
- Optimized grounding around the signal path
The flex section was designed to remain within the specified bending radius during assembly and normal operation.
Electrical and Mechanical Validation
KKCPB performed:
- High-speed impedance analysis
- TDR testing
- Mechanical bend testing
- Thermal cycling
- Vibration testing
- AOI inspection
- X-Ray inspection
- Solder reflow validation
Measured Results
| Parameter | Target | KKCPB Result |
| Differential Impedance | 100Ω ±10% | 100Ω ±5.2% |
| Bend Radius | ≥4.0 mm | 4.0 mm |
| Signal Loss | Within system specification | Passed |
| Thermal Cycling | 1000 cycles | Passed |
| Vibration | Automotive profile | Passed |
| Connector Count | 2 | 0 |
| Assembly Height Reduction | Required | 18% |
The rigid-flex solution eliminated the cable and connector interface between the two PCB sections, reducing mechanical complexity while creating additional usable space inside the camera module.
The project demonstrates an important engineering principle: rigid-flex PCB should be selected when the mechanical architecture itself benefits from integrated electrical interconnection.
Stackup Design & RF / High-Speed Implementation
Representative Rigid-Flex Stackup
| Layer | Function | Material |
| L1 | Component / Signal | High-TG FR4 |
| L2 | Ground | Copper |
| L3 | High-Speed Signal | High-TG FR4 |
| L4 | Power / Ground | Copper |
| Flex L1 | High-Speed Signal | Polyimide + RA Copper |
| Flex L2 | Ground / Return | Polyimide + RA Copper |
| L5 | Ground | Copper |
| L6 | Bottom Signal | High-TG FR4 |
The exact layer structure must be customized according to component density, bend requirements, signal speed, impedance targets, and mechanical constraints.
Rigid-to-Flex Transition
The rigid-to-flex transition is one of the most sensitive areas of the design.
KKCPB engineering considerations include:
- Avoiding abrupt copper density changes
- Controlling copper termination
- Managing coverlay overlap
- Avoiding vias in dynamic bending zones
- Increasing bend radius where possible
- Controlling adhesive and dielectric thickness
- Optimizing ground continuity
For high-speed signals, the transition region should also be evaluated using electromagnetic simulation and impedance analysis.
Simulation & Validation
TDR
Time Domain Reflectometry is used to evaluate impedance consistency along high-speed transmission paths.
For rigid-flex designs, TDR is particularly useful for identifying impedance discontinuities at the rigid-to-flex transition.
HFSS
HFSS can be used when the rigid-flex PCB carries RF or high-speed signals requiring three-dimensional electromagnetic analysis.
Typical analysis includes:
- Impedance behavior
- Signal coupling
- Return current paths
- Via transitions
- EMI performance
ADS
ADS can be used for RF circuit and transmission-line modeling when the PCB includes RF front-end circuits, antenna interfaces, or microwave signals.
Thermal FEM
Thermal FEM analysis evaluates heat distribution around:
- Processors
- Power ICs
- LED drivers
- Camera modules
- High-current components
This becomes particularly important when flexible sections pass near heat-generating components.
Environmental & Reliability Validation
Rigid and rigid-flex PCB reliability must be evaluated according to the actual application environment.
| Reliability Test | Typical Condition | Engineering Objective |
| Thermal Cycling | -40°C to +125°C | Evaluate material and interconnection stability |
| Humidity | 85°C / 85% RH | Evaluate moisture resistance |
| Vibration | Application-specific | Evaluate mechanical reliability |
| Solder Reflow | Up to 260°C | Validate assembly compatibility |
| Flexing Test | Defined bend radius and cycles | Validate flexible section durability |
| Insulation Resistance | Application-specific | Verify electrical isolation |
| Microsection Analysis | Production sampling | Verify vias and layer structures |
For dynamic rigid-flex applications, flex-cycle testing is especially important. The number of cycles, bend radius, bend direction, and flexing speed should be defined according to the customer’s actual mechanical requirements.
Engineering Summary & Contact
The difference between FR4 rigid PCB and Rigid-Flex PCB is fundamentally a difference in mechanical architecture, material system, manufacturing process, and application requirements.
FR4 rigid PCB is generally the better choice when the circuit board remains mechanically fixed and cost-efficient multilayer construction is the priority.
Rigid-flex PCB becomes more advantageous when the product requires:
- Three-dimensional routing
- Reduced connectors
- Cable replacement
- Space optimization
- Mechanical bending
- Improved system integration
From an engineering and procurement perspective, the correct question is not simply which PCB is cheaper. The better question is which PCB architecture provides the lowest total system cost while meeting electrical, mechanical, manufacturing, and reliability requirements.
KKCPB supports both FR4 Rigid PCB and Rigid-Flex PCB manufacturing, from prototype and DFM analysis through multilayer fabrication, HDI processing, component assembly, electrical testing, and reliability validation.
For projects involving high-density interconnection, automotive electronics, industrial sensors, medical equipment, robotics, RF modules, or compact electronic assemblies, KKCPB can evaluate the PCB structure, material combination, stackup, bend requirements, and manufacturing process before production.
