Engineering Context / Abstract
Electromagnetic compatibility is not a final certification task that begins after a product has been assembled. EMC and EMI risk is created by the schematic, component placement, PCB stackup, trace routing, return-current geometry, power distribution network, cable interface, enclosure, and manufacturing variation. When these elements are treated separately, a PCB may function correctly on the bench yet fail radiated emissions, conducted emissions, electrostatic discharge, electrical fast transient, or radiated immunity testing.
EMC describes the ability of electronic equipment to operate correctly in its electromagnetic environment without generating unacceptable interference or becoming excessively susceptible to external disturbances. EMI is the unwanted electromagnetic energy that couples into or out of the product through radiation, conduction, capacitive coupling, inductive coupling, or common-impedance paths. Effective EMC PCB design therefore controls both emissions and immunity.
The importance of EMC and EMI risk in PCB design and manufacturing increases as switching edges become faster, power density rises, wireless interfaces are added, and product dimensions shrink. Clock harmonics, DC-DC converter switching nodes, memory buses, motor drivers, relays, long cables, connector shields, and discontinuous reference planes can all become EMI sources or coupling paths. A reliable design must control the source, interrupt the coupling path, and protect the susceptible circuit.
KKPCB combines PCB design and layout engineering with stackup review, impedance planning, DfMA, fabrication control, assembly inspection, and prototype validation. This approach moves EMC risk reduction upstream, where layer assignments, return paths, filter placement, shielding, and component orientation can still be corrected without expensive enclosure changes or repeated compliance testing.
Core Engineering Challenges

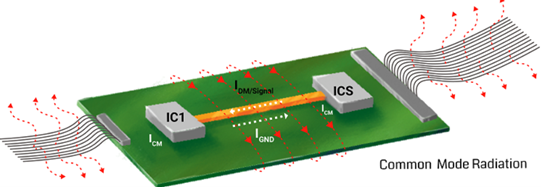

Most EMI failures are not caused by one isolated mistake. They result from a chain of small decisions that creates an efficient source, coupling path, and antenna. A fast signal may cross a split reference plane, force return current around a large loop, couple into a cable, and radiate through the enclosure. A switching regulator may have an oversized high-di/dt loop, inject noise into the power distribution network, and create both conducted and radiated emissions.
| EMC and EMI Risk | PCB Design or Manufacturing Cause | System-Level Consequence |
|---|---|---|
| Radiated emissions | Large current loops, long clock traces, reference-plane discontinuities, or poorly terminated cables | Compliance failure, interference with nearby receivers, and unstable wireless performance |
| Conducted emissions | High switching-node energy, weak input filtering, shared return impedance, or poor chassis bonding | Noise returned through power or communication cables and failure at the line interface |
| Crosstalk and internal EMI | Insufficient spacing, parallel routing, poor layer assignment, or inadequate ground reference | Data errors, ADC noise, false triggering, jitter, and intermittent control faults |
| ESD susceptibility | Long discharge paths, weak connector protection, insufficient chassis return, or gaps beneath protection devices | Reset, latch-up, corrupted data, damaged interfaces, or unsafe operation |
| Radiated immunity failure | High-impedance inputs, unfiltered cables, resonant traces, or insufficient shielding | Functional degradation when exposed to external RF fields |
| Lot-to-lot EMC variation | Stackup deviation, uncontrolled impedance, component substitution, solder variation, or inconsistent shield contact | Prototype passes but later production units fail pre-compliance or certification |
EMC risk analysis should identify the frequency, energy, duty cycle, physical size, and current path of every major noise source. Edge rate is often more important than clock frequency because fast transitions contain high-frequency harmonic energy. The review should also identify susceptible analog inputs, reference circuits, reset lines, crystal nodes, communication ports, and safety-related control signals.
Signal quality and electromagnetic compatibility are closely related. Reflection, ringing, overshoot, and return-path discontinuity increase high-frequency energy and EMI radiation. KKPCB therefore links EMC review with signal integrity PCB design, rather than treating EMI control as a separate shielding exercise.
Material Science & Dielectric Performance
PCB material does not eliminate EMI by itself, but its dielectric properties and dimensional consistency influence impedance, propagation velocity, loss, plane capacitance, and resonance behavior. The laminate system, copper roughness, dielectric thickness, glass weave, solder mask, and finished copper geometry affect how high-frequency energy travels through the board.
| Material or Stackup Parameter | EMC Relevance | Manufacturing Control |
|---|---|---|
| Dielectric constant | Influences trace impedance, propagation delay, wavelength, and resonant behavior | Qualified material selection and lot-controlled stackup calculation |
| Dissipation factor | Affects high-frequency attenuation and signal edge quality | Material class selected according to data rate, frequency, and loss budget |
| Dielectric thickness | Controls trace-to-plane coupling, characteristic impedance, and return-path inductance | Prepreg selection, pressed-thickness modeling, and finished-board verification |
| Copper thickness and width | Changes impedance, current density, loop inductance, and switching loss | Etch compensation, copper measurement, and impedance coupon correlation |
| Plane separation | Closer power and ground planes increase distributed capacitance and reduce PDN impedance | Symmetrical multilayer construction and controlled dielectric spacing |
| Surface finish and solder mask | Can affect fine RF geometry, shield grounding, and exposed chassis-contact areas | Finish selection, mask-clearance control, and contact-surface inspection |
A well-designed multilayer PCB stackup normally places critical signal layers adjacent to continuous reference planes. This reduces loop area, contains electromagnetic fields, and gives return current a short path. Power and ground layers may be positioned with thin dielectric spacing to lower power-distribution impedance, while noisy and sensitive routing is separated by reference planes.
Material selection must remain consistent with the electrical model. Replacing a laminate, prepreg construction, copper foil, or dielectric thickness after layout can alter impedance and EMC behavior. KKPCB uses controlled PCB material management and stackup confirmation before fabrication so the manufactured board matches the EMC PCB design assumptions.
KKPCB Case Study — EMC Risk Reduction for a Mixed-Signal Industrial Control PCB
Case-study note: The following is a representative engineering example based on common industrial control PCB risks and KKPCB design-for-manufacturing workflows. It illustrates the validation method rather than disclosing a customer-specific compliance report.
Client and Application Context
The representative product is a six-layer industrial control board containing an MCU, Ethernet interface, isolated RS-485, 24 V input, multiple DC-DC converters, relay outputs, precision analog acquisition, and external sensor cables. The board operates beside motors, contactors, and variable-frequency equipment, creating both internal EMI and external immunity risk.
Engineering Problem
The initial layout placed a switching regulator close to the analog input section, routed a high-speed interface across a reference-plane split, and connected cable shields through long traces to digital ground. Several decoupling capacitors were separated from their device power pins by narrow traces and vias. The board functioned during normal bench testing, but near-field scanning showed strong energy around the converter switching frequency, clock harmonics, and cable connectors.
KKPCB Engineering Solution
- Source reduction: The high-di/dt converter loop was minimized, the switching node copper area was reduced, and input and output capacitors were moved directly to the power stage.

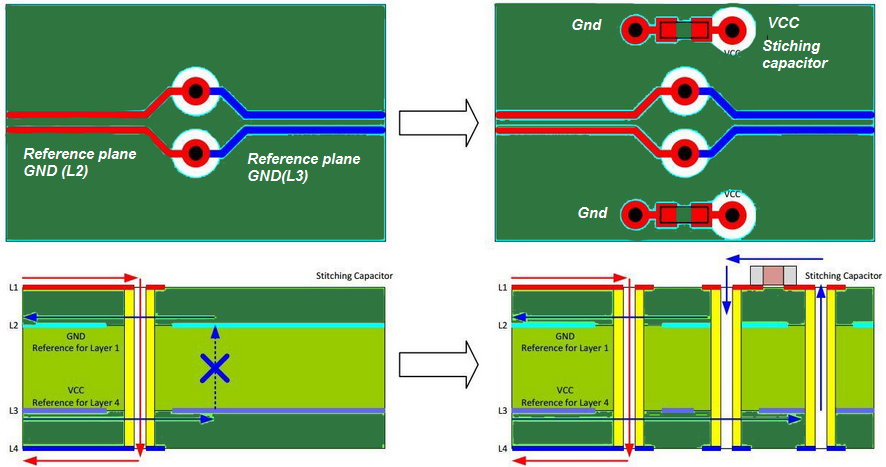

- Return-path control: Critical traces were rerouted over continuous reference planes, and stitching vias were added near layer transitions and connector boundaries.
- Functional partitioning: Noisy power, digital processing, communication, and precision analog sections were separated by current-flow logic rather than arbitrary ground-plane splitting.
- Power integrity: Decoupling placement and PDN impedance were reviewed using power integrity PCB design principles.
- Interface protection: ESD devices, common-mode filtering, termination, and chassis connections were placed at the connector entry point.
- Shield strategy: Cable shields were connected to chassis reference through short, low-inductance paths instead of carrying discharge current through digital ground.
- Controlled impedance: Ethernet and other fast interfaces were manufactured as controlled impedance PCB structures with production coupons.
Representative Validation Outcome
| Validation Item | Initial Risk | Representative Post-Optimization Outcome |
|---|---|---|
| Near-field scan | Strong localized energy at converter and connector areas | Dominant hotspots reduced and confined closer to the source |
| Radiated-emissions pre-scan | Clock and cable-related peaks close to the applicable limit | Engineering margin established before formal laboratory testing |
| Conducted-emissions pre-scan | Switching energy coupled onto the 24 V input | Input-filter and converter-loop changes reduced line-coupled noise |
| ESD functional check | Communication reset during connector discharge | Protected interface recovered without unintended system reset |
| Analog-noise measurement | Converter activity visible in sensor acquisition | Reduced coupling after partitioning and return-path correction |
The case demonstrates why EMC and EMI risk must be addressed before production tooling. Layout changes, stackup changes, filter placement, and chassis-current routing are relatively inexpensive during design review. The same corrections become costly after enclosure tooling, cable approval, firmware validation, and regulatory testing are complete.
Stackup Design & EMC Implementation
Stackup design is one of the strongest EMC controls available because it determines field containment and return-current behavior. A six-layer structure can provide better EMI control than a poorly arranged higher-layer board if critical signals remain adjacent to uninterrupted planes and the power distribution network is designed intentionally.
| Layer | Representative Function | EMC Purpose |
|---|---|---|
| L1 | Components and short critical signals | Keeps clocks, converters, and interfaces compact and accessible |
| L2 | Continuous ground plane | Provides a close return path and contains fields from L1 |
| L3 | Internal signals and controlled power routing | Supports protected routing referenced to adjacent planes |
| L4 | Power distribution and local ground regions | Reduces PDN impedance and separates current domains |
| L5 | Continuous ground plane | Provides shielding and return continuity for bottom routing |
| L6 | Low-speed signals and components | Completes short interconnects while remaining referenced to L5 |
Ground planes should not be split casually. Analog, digital, and power sections are often better controlled through component placement and current-path management while retaining a continuous reference. When a signal changes layers, its return current also needs a nearby transition path through a ground stitching via or appropriate reference-transfer structure.
EMI control also depends on the assembled product. Connector shells, metal shields, fasteners, heat sinks, enclosure seams, and cable terminations are part of the electromagnetic structure. DfMA engineering should therefore verify shield-footprint contact, exposed grounding pads, solder coverage, mounting pressure, and keep-out areas before mass production.
Simulation and Prototype Verification
- Signal-integrity simulation: Evaluates reflection, ringing, crosstalk, and termination behavior that can increase EMI.
- Power-integrity simulation: Identifies PDN resonances, anti-resonance peaks, and decoupling gaps.
- Field and current-density analysis: Locates large loops, return-path discontinuities, and coupling between noisy and sensitive regions.
- Near-field scanning: Identifies frequency-specific magnetic and electric-field hotspots on the assembled PCB.
- Oscilloscope and spectrum analysis: Correlates time-domain switching events with spectral emissions.
- Pre-compliance testing: Screens conducted emissions, radiated emissions, ESD, EFT, surge, and RF immunity before formal certification.
A PCB prototype validation should use the intended power supply, cables, loads, enclosure, firmware mode, and peripheral configuration. Testing a bare board with short laboratory leads can hide cable radiation, chassis-current problems, and operating modes that dominate final EMC performance.
Environmental & Reliability Validation
EMC validation is not limited to emissions. The applicable test plan may include radiated and conducted emissions, radiated RF immunity, conducted RF immunity, electrostatic discharge, electrical fast transient, surge, voltage dips, and magnetic-field immunity. The exact standards and test levels depend on the product category, market, port type, installation environment, and safety function.
| Validation Area | Engineering Purpose | PCB and PCBA Control Point |
|---|---|---|
| Radiated emissions | Measure electromagnetic energy leaving the product | Clock routing, current loops, cable common-mode current, and shield continuity |
| Conducted emissions | Measure noise transferred through power and signal ports | Input filters, switching loops, return impedance, and chassis bonding |
| ESD immunity | Verify recovery from direct and indirect electrostatic discharge | Protection placement, discharge path, connector shield, reset, and grounding |
| Radiated RF immunity | Verify operation in external radio-frequency fields | Cable filtering, shield coverage, sensitive-node impedance, and enclosure coupling |
| EFT and surge | Verify resilience to fast transients and higher-energy disturbances | Protection coordination, spacing, grounding, and energy-return paths |
| Production consistency | Ensure certified construction remains stable across lots | Approved BOM, stackup, impedance, shielding, soldering, and inspection records |
Manufacturing changes can invalidate the assumptions behind a compliant prototype. Alternate DC-DC converters, different common-mode chokes, changed capacitor characteristics, revised cable assemblies, thicker solder mask, altered dielectric spacing, or incomplete shield soldering may change EMC performance. Engineering change control must therefore identify every substitution that affects the EMI source, coupling path, or susceptible circuit.
KKPCB integrates AOI, X-ray where required, impedance testing, functional testing, shield inspection, component traceability, and outgoing review through its PCB and PCBA quality control process. For assembled products, PCB assembly and functional testing should confirm grounding hardware, filter orientation, protection devices, shield contact, and EMC-sensitive operating modes.
Engineering Summary & Contact
The importance of EMC and EMI risk in PCB design and manufacturing is that electromagnetic performance is built into the product long before formal testing. Trace routing, loop area, stackup, reference planes, decoupling, power integrity, controlled impedance, connector protection, cable shielding, chassis bonding, and manufacturing consistency determine whether a product emits excessive noise or remains vulnerable to external disturbances.
Effective EMC PCB design follows a source-path-victim model. Reduce energy at the source, control the coupling path, and protect the susceptible circuit. Effective EMC PCB manufacturing then preserves the approved stackup, copper geometry, impedance, component selection, filter placement, shield connection, and assembly quality across prototypes and production lots.
KKPCB supports EMC and EMI risk reduction through layout review, stackup engineering, SI and PI analysis, impedance control, prototype fabrication, high-reliability PCB manufacturing, precision assembly, and verification planning. This workflow is applicable to industrial control, automotive electronics, medical equipment, communication systems, aerospace electronics, power converters, IoT devices, and other EMC-sensitive products.
For an effective EMC review, provide the schematic, PCB database or Gerber files, stackup, power architecture, interface list, cable definition, enclosure model, operating modes, clock frequencies, switching-regulator data, target markets, applicable product standard, and previous test report. These inputs allow EMC and EMI risk to be converted into specific layout, manufacturing, assembly, and validation controls before formal compliance testing.
