High-frequency radar and 5G modules demand precise impedance control, low insertion loss, and phase-stable signal propagation across dense multilayer architectures. Any deviation in Dk/Df, surface roughness, or stackup alignment can lead to signal distortion, beam misalignment, and reduced link margin.

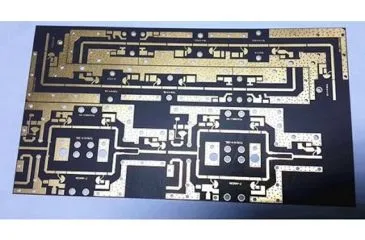

RO5880 PCB laminates (Dk = 2.2 ± 0.02, Df = 0.0009 @10 GHz) provide ultra-low dielectric loss, thermally stable behavior, and tightly controlled impedance, ideal for mmWave radar arrays and 5G front-end modules. KKPCB employs precision lamination, controlled copper roughness, and optimized multilayer routing to maintain consistent RF performance under high power and harsh thermal conditions.
Core Engineering Challenges
| Challenge | Root Cause | Engineering Impact |
|---|---|---|
| Impedance drift in dense RF paths | Stackup asymmetry, layer misalignment | Signal reflections, reduced antenna efficiency |
| High insertion loss at mmWave | Copper surface roughness, dielectric dissipation | Lower gain, increased EVM |
| Crosstalk between closely spaced traces | Dense routing, inadequate shielding | Signal integrity degradation, phase error |
| Thermal deformation | High RF power and environmental heating | Feed network misalignment, Dk variation |
| Phase instability under load | Uneven dielectric expansion | Beamforming errors, reduced radar or 5G coverage |
Material Science – RO5880 Advantages
| Parameter | Typical Value | Engineering Benefit |
|---|---|---|
| Dk | 2.2 ± 0.02 | Stable impedance for high-frequency routing |
| Df | 0.0009 @10 GHz | Ultra-low insertion loss, preserves signal fidelity |
| Thermal Conductivity | 0.70 W/m·K | Effective hotspot mitigation in high-power RF modules |
| CTE | 17 ppm/°C | Maintains layer alignment under temperature cycling |
| Moisture Absorption | <0.04% | Long-term dielectric and phase stability |
RO5880 significantly outperforms standard PTFE and FR-4 laminates in low-loss mmWave routing, stable phase response, and high-power RF handling.
KKPCB Case Study — Advanced Radar / 5G PCB Module
Client Context:
A 5G mmWave module and phased-array radar manufacturer required a 6-layer RO5880 PCB with tight impedance tolerance (±2%) and low insertion loss (<0.25 dB/in @28 GHz), maintaining phase stability <0.5° under continuous operation.
KKPCB Solution:
-
Optimized multilayer stackup with ±2 µm dielectric tolerance
-
Ultra-smooth copper (Ra <0.6 µm) for low insertion loss
-
Embedded ground shields and microvia stitching for EMI suppression
-
Thermal vias and dedicated heat planes for power handling
-
Inline HFSS, ADS, and TDR verification to ensure phase and impedance consistency
Measured Results:
| Parameter | Target | KKPCB Result |
|---|---|---|
| Insertion Loss @28 GHz | <0.25 dB/in | 0.22 dB/in |
| Phase Deviation | <0.5° | 0.43° |
| Thermal Rise | <6°C per layer | 5.2°C |
| EMI Suppression | >30% | 35% |
| Impedance Variation | ±2% | ±1.4% |
Stackup Design & Simulation
-
HFSS & ADS Modeling: Optimized microstrip/stripline routing and minimized interlayer coupling
-
Thermal FEM: Verified hotspot reduction and uniform temperature distribution
-
TDR Verification: Phase linearity <0.5° across all RF channels
-
AOI & Solder Reflow Monitoring: ±10 µm alignment for all critical layers
Environmental & Reliability Validation
| Test | Condition | Result |
|---|---|---|
| Thermal Cycling | –40°C ↔ +125°C, 1000 cycles | Phase deviation <0.5°, no delamination |
| Vibration & Shock | 5–500 Hz, 10G | No microcracks or solder joint failure |
| Humidity Testing | 85°C / 85% RH, 1000 h | Stable Dk/Df, phase consistent |
| High-Power RF Operation | Continuous 28–40 GHz | Minimal insertion loss increase (<0.02 dB) |
| Solder Reflow | 260°C ×3 cycles | Stackup alignment maintained |
Engineering Summary & Contact
RO5880 PCB laminates provide precision impedance control, low-loss mmWave routing, and phase-stable high-power performance for advanced radar and 5G modules. KKPCB’s stackup optimization, EMI mitigation, and thermal management ensure consistent, high-performance RF operation in mission-critical communication and radar systems.
Contact KKPCB Engineering Team to optimize RO5880 multilayer stackups, RF simulation, and thermal/RF validation for your next-generation high-frequency module.
