With the rapid development of industrial automation, intelligent manufacturing, and energy-efficient control systems, accurate current monitoring has become increasingly important for modern industrial equipment.

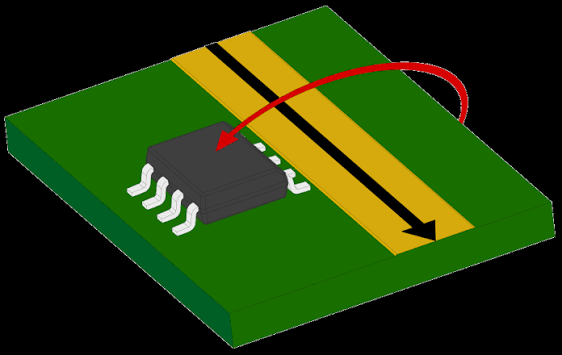

Magnetic current sensors provide a non-invasive method for measuring electrical current by detecting the magnetic field generated around a conductor. Compared with traditional current sensing methods, they offer advantages such as:

• Electrical isolation between primary and secondary circuits
• Fast response speed
• Low power consumption
• High reliability
• Compact integration capability

However, achieving stable current measurement in industrial environments requires more than selecting a suitable sensor component. The supporting PCBA (Printed Circuit Board Assembly) must address challenges including:

• Signal accuracy
• Noise interference
• Power stability
• Thermal reliability
• Manufacturing consistency

This case study presents how KKPCB supported an industrial automation project through a customized magnetic current sensor PCBA solution, improving measurement reliability, system integration, and production readiness.

1. Project Background

A customer developing an industrial automation control system required a compact current monitoring module for integration into motor control and power management equipment.

The current sensor module was designed to monitor electrical parameters in real time and provide feedback to the control system for:

• Equipment protection
• Energy management
• Control optimization

The product requirements included:

• High measurement accuracy
• Fast current response
• Electrical isolation capability
• Compact PCB size
• Stable operation in industrial environments

During prototype evaluation, the customer identified several PCB-level challenges related to signal stability, electromagnetic interference, and production optimization.

2. Key Challenges in Magnetic Current Sensor PCBA Development

Challenge 1: Current Measurement Accuracy and Signal Stability

Customer Pain Point

Magnetic current sensors are sensitive to external interference and PCB layout conditions.

Potential issues included:

• Measurement deviation
• Signal noise
• Offset fluctuation
• Temperature-related drift

Factors affecting accuracy included:

• Sensor placement
• Signal routing
• Grounding design
• Power supply stability

The PCBA required careful optimization to maintain reliable measurement results.

Challenge 2: EMI/EMC Interference in Industrial Environments

Customer Pain Point

Industrial automation systems often contain strong electromagnetic interference sources, such as:

• Motors
• Inverters
• Switching power supplies
• High-current cables

These sources may affect weak sensor signals and cause:

• Incorrect current readings
• Communication instability
• Control system errors

The PCB design needed improved:

• Noise isolation
• Signal shielding
• Grounding strategy

Challenge 3: Integration of Sensor, Control, and Communication Circuits

Customer Pain Point

The compact sensor module required integration of multiple functional blocks:

• Magnetic sensing circuit
• Signal conditioning circuit
• MCU control unit
• Communication interface
• Power management circuit

Limited PCB space created challenges in:

• Component placement
• Signal separation
• Thermal distribution
• Assembly feasibility

Challenge 4: Power Supply Stability

Customer Pain Point

The sensor module required stable low-voltage power operation.

Power fluctuations could influence:

• Sensor output accuracy
• Signal processing performance
• Communication reliability

The PCBA required optimized:

• Power filtering
• Voltage regulation
• Protection circuits

Challenge 5: Transition from Prototype to Mass Production

Customer Pain Point

The prototype achieved basic functionality, but production required improvements in:

• Manufacturing consistency
• Assembly reliability
• Testing efficiency

Potential risks included:

• Fine-pitch component assembly
• Soldering defects
• Limited test accessibility

3. KKPCB Engineering Support and Solutions

3.1 PCB Design Review and DFM Optimization

Before production, KKPCB engineering team conducted a comprehensive review focusing on:

• PCB layout structure
• Component placement
• Manufacturing feasibility
• Testing requirements

Optimization actions included:

• Improving component arrangement
• Enhancing assembly accessibility
• Adding test points
• Reducing production risks

This helped the customer achieve a smoother transition from prototype validation to production.

3.2 Signal Integrity and Noise Reduction Optimization

To improve magnetic current measurement stability, PCB layout optimization focused on:

Signal Path Optimization

The engineering team improved:

• Sensor output routing
• Signal trace length
• Sensitive signal separation

This reduced:

• Noise coupling
• Signal distortion
• Measurement fluctuations

Grounding Strategy Improvement

Optimization included:

• Improved ground return paths
• Reduced interference between functional areas
• Better separation between power and sensing circuits

3.3 Power Management Optimization

The PCBA power section was optimized through:

• Voltage regulation improvement
• Filtering circuit optimization
• Noise reduction design

The improvements helped provide:

• More stable sensor operation
• Better measurement consistency
• Improved system reliability

3.4 Communication Interface Optimization

For industrial communication functions, KKPCB optimized:

• Interface protection circuits
• Signal routing
• EMC performance

The solution supported reliable communication between:

• Current sensor module
• Industrial controller
• Monitoring system

3.5 Thermal and Reliability Optimization

Although magnetic current sensors generally have low power consumption, industrial applications require long-term stability.

The design considered:

• Component heat distribution
• PCB copper area
• Operating environment
• Material reliability

These improvements enhanced:

• Operating lifetime
• Environmental adaptability
• Product consistency

4. Manufacturing and Quality Control Process

PCB Fabrication

The customized current sensor PCBA required attention to:

• Multilayer PCB structure
• Signal isolation
• Surface finish quality
• Dimensional accuracy

Material selection considered:

• Electrical performance
• Thermal stability
• Industrial reliability

SMT Assembly

The assembly process included:

Solder Paste Printing

Ensuring:

• Accurate solder volume
• Reliable fine-pitch assembly

Automated Component Placement

High-precision placement was used for:

• Sensor interface components
• IC devices
• Passive components

Reflow Soldering

Optimized profiles ensured:

• Stable solder joints
• Reduced thermal stress

Inspection and Testing

Quality control included:

SPI Inspection

Checking:

• Solder paste printing accuracy

AOI Inspection

Detecting:

• Missing components
• Placement errors
• Solder defects

Functional Testing

Validation included:

• Current measurement accuracy
• Signal output stability
• Communication performance
• Power consumption

5. PCB Technologies Used for Magnetic Current Sensor Applications

5.1 Multilayer PCB

Advantages:

• Better signal separation
• Improved power distribution
• Higher integration capability

Applications:

• Industrial monitoring modules

5.2 High-Tg FR-4 PCB

Advantages:

• Better thermal stability
• Improved reliability under temperature variation

Applications:

• Industrial control equipment

5.3 HDI PCB

Advantages:

• Compact size
• Higher routing density

Applications:

• Miniaturized sensor modules

6. Applications of Magnetic Current Sensor PCBAs

Industrial Motor Control

Applications:

• Servo drives
• Motor controllers
• Automation equipment

Functions:

• Current monitoring
• Overcurrent protection
• Performance optimization

Power Management Systems

Applications:

• Industrial power supplies
• Energy monitoring equipment

Functions:

• Real-time current measurement
• Power efficiency analysis

Renewable Energy Equipment

Applications:

• Solar inverters
• Energy storage systems

Functions:

• Current feedback
• System protection

Electric Mobility Systems

Applications:

• Charging equipment
• Motor control modules

Functions:

• Battery current monitoring
• Power management

7. Project Results

Through PCB design optimization, signal improvement, and manufacturing process control, the project achieved:

• Improved current measurement stability
• Enhanced EMI resistance
• Better production consistency
• Reduced prototype-to-production risks

Validation results included:

• 98%+ first-pass production yield
• Improved signal repeatability during operation
• Reduced debugging time during system integration

8. Key Engineering Insights

8.1 Sensor Accuracy Depends on PCB-Level Design

A high-performance magnetic sensor requires not only a quality sensing element but also optimized:

• PCB layout
• Power design
• Signal routing
• Noise control

8.2 Industrial Sensor PCBAs Require Strong EMC Capability

Industrial environments introduce complex electrical interference.

Reliable designs should consider:

• Grounding
• Filtering
• Isolation
• Signal integrity

from the beginning of development.

8.3 Early DFM Review Improves Production Reliability

Prototype success does not always guarantee stable mass production.

Early engineering review helps identify:

• Assembly issues
• Testing challenges
• Reliability risks

before production scaling.

Conclusion

Magnetic current sensor PCBAs play an important role in modern industrial automation systems by providing accurate electrical monitoring and feedback control.

A reliable solution requires comprehensive consideration of:

• Measurement accuracy
• Signal integrity
• EMI/EMC performance
• Power stability
• Manufacturing feasibility

In this project, KKPCB supported the customer through PCB design optimization, signal integrity improvement, EMC enhancement, and production process control, helping transform a magnetic current sensing concept into a reliable industrial automation solution.

As industrial systems continue moving toward smarter and more efficient operation, customized PCBA solutions will remain essential for enabling accurate sensing, intelligent control, and reliable equipment performance.
