With the continuous development of high-speed electronic systems, PCB design is facing increasingly demanding requirements for signal transmission performance. In applications such as communication equipment, industrial control systems, automotive electronics, semiconductor testing equipment, and RF systems, maintaining stable signal quality has become a key factor affecting product reliability.
In multilayer PCB design, impedance-controlled routing is one of the most important techniques for ensuring signal integrity. Incorrect impedance design may lead to:
- Signal reflection
- Crosstalk
- Transmission loss
- Timing errors
- System instability
Unlike traditional low-speed PCB routing, high-speed impedance routing requires comprehensive consideration of PCB materials, stack-up structure, trace geometry, reference planes, and manufacturing capability.
This article shares practical considerations and engineering experience in multilayer PCB impedance line routing.
1. Understanding Impedance Control in Multilayer PCB
1.1 What Is PCB Impedance?
PCB impedance refers to the resistance encountered by a high-frequency signal when traveling through a transmission line structure.
It is determined by multiple factors, including:
- Trace width
- Trace thickness
- Dielectric thickness
- Dielectric constant (Dk)
- Distance to reference plane
- Signal frequency
For high-speed circuits, maintaining consistent impedance is essential to ensure signal integrity.
1.2 Why Is Impedance Control Important?
When a signal travels through a PCB trace with impedance mismatch, part of the signal energy may be reflected back.
Potential problems include:
- Signal distortion
- Increased noise
- Data errors
- Communication failure
Proper impedance control helps achieve:
- Stable signal transmission
- Reduced signal loss
- Improved electromagnetic compatibility
2. Key Factors Affecting PCB Impedance Routing
2.1 PCB Stack-Up Design
A reliable impedance-controlled PCB starts with a properly designed stack-up.
The relationship between signal layers and reference planes directly affects impedance.
Important stack-up factors include:
- Layer arrangement
- Dielectric thickness
- Copper thickness
- Material selection
Common structures include:
Microstrip Structure
Signal trace is located on the outer layer with a reference plane underneath.
Advantages:
- Easier manufacturing
- Lower cost
Applications:
- General high-speed interfaces
Stripline Structure
Signal trace is embedded between two reference planes.
Advantages:
- Better electromagnetic shielding
- More stable impedance
Applications:
- Sensitive high-speed signals
- RF circuits
3. Material Selection for Impedance-Controlled PCB
3.1 Dielectric Constant Stability
The dielectric constant (Dk) of PCB material affects signal propagation speed and impedance.
For high-frequency applications, engineers should consider:
- Dk consistency
- Frequency characteristics
- Temperature stability
Common materials include:
3.2 Material Loss Characteristics
At higher frequencies, dielectric loss and copper roughness influence signal attenuation.
Low-loss materials help reduce:
- Insertion loss
- Signal degradation
- Phase variation
This is especially important for:
- RF circuits
- Microwave systems
- High-speed communication boards

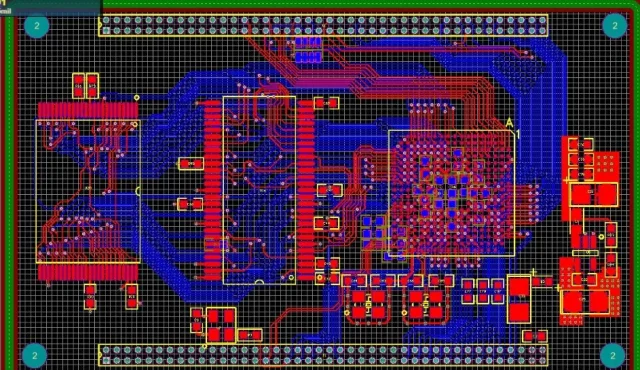

4. Impedance Line Routing Considerations
4.1 Maintain Consistent Trace Geometry
Impedance-controlled traces require stable physical dimensions.
Engineers should maintain:
- Uniform trace width
- Constant dielectric spacing
- Consistent copper thickness
Sudden changes may create impedance discontinuities.
4.2 Avoid Unnecessary Layer Transitions
Each via transition can introduce:
- Parasitic effects
- Signal discontinuity
- Additional loss
Design recommendations:
- Minimize unnecessary vias
- Optimize signal layer transitions
- Use proper via structures

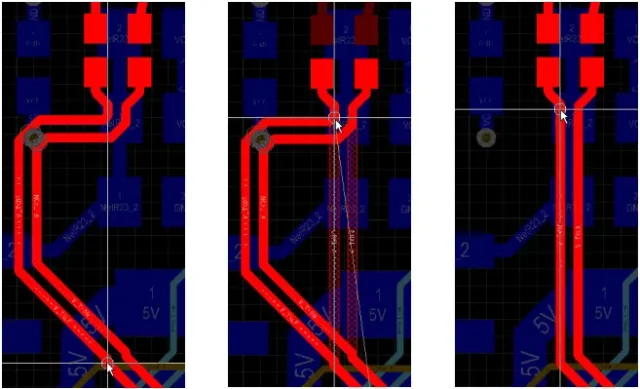

4.3 Differential Pair Routing
Many high-speed interfaces use differential signaling.
Examples:
- USB
- PCIe
- Ethernet
- LVDS
Important requirements include:
- Controlled pair spacing
- Equal trace length
- Symmetrical routing
Incorrect differential routing may cause:
- Common-mode noise
- Reduced signal quality
- Timing issues
4.4 Maintain Reference Plane Continuity
High-speed signals require stable return current paths.
Avoid routing across:
- Plane gaps
- Split ground areas
- Power plane discontinuities
A continuous reference plane helps:
- Reduce EMI
- Improve signal integrity
- Maintain impedance stability
5. Practical Experience in Multilayer PCB Impedance Routing
5.1 Plan Critical Signals Before General Routing
In complex multilayer PCB projects, not all signals have equal priority.
Critical signals should be routed first, including:
- Clock signals
- High-speed data lines
- RF transmission lines
- Differential pairs
This avoids later design conflicts.
5.2 Separate High-Speed and Noisy Circuits
During routing, engineers should consider signal interaction.
High-noise circuits include:
- Switching power supplies
- Motor control circuits
- High-current paths
Sensitive circuits include:
- Analog signals
- RF signals
- Sensor interfaces
Proper separation improves overall system performance.
5.3 Balance Trace Density and Manufacturability
High-density routing may improve space utilization but increase manufacturing difficulty.
Potential issues include:
- Narrow traces
- Tight spacing
- Difficult inspection
A practical design should balance:
- Electrical performance
- Manufacturing capability
- Production yield
6. Common Problems in Multilayer Impedance Routing
6.1 Incorrect Stack-Up Calculation
Problems may occur when:
- Wrong dielectric thickness is used
- Material parameters are inaccurate
- Layer arrangement changes during fabrication
Results may include:
- Impedance deviation
- Signal loss
6.2 Excessive Trace Width Variation
Changes in trace width may cause:
- Impedance fluctuation
- Signal reflection
Consistency is especially important for RF and high-speed circuits.
6.3 Poor Via Design
Improper via structures may introduce:
- Additional capacitance
- Signal discontinuity
- Resonance effects
For high-speed designs, engineers should evaluate:
- Via size
- Back drilling requirements
- Via stub effects

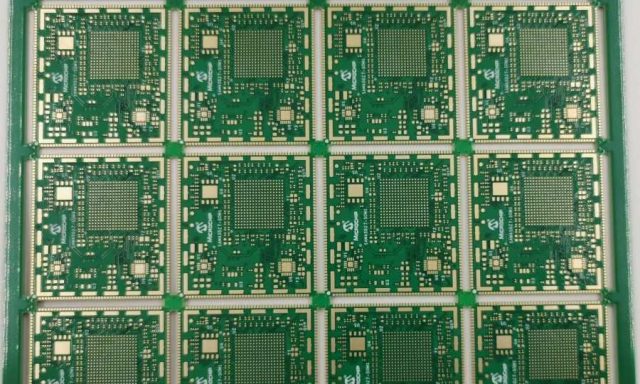

7. Manufacturing Verification of Impedance Control
Design accuracy must be supported by manufacturing verification.
7.1 Impedance Testing
Common methods include:
- TDR (Time Domain Reflectometry)
TDR testing verifies:
- Actual impedance value
- Signal path consistency
- Manufacturing variation
7.2 Engineering Sample Validation
Before mass production, prototype verification helps confirm:
- Stack-up accuracy
- Signal performance
- Assembly feasibility
7.3 DFM Review
Early DFM analysis identifies potential risks related to:
- Trace width capability
- Layer registration
- Material availability
- Manufacturing tolerance
8. Applications Requiring Impedance-Controlled Multilayer PCB
High-Speed Communication Equipment
Requirements:
- Low signal loss
- Stable transmission
- Controlled impedance
RF and Microwave Systems
Requirements:
- Phase stability
- Low insertion loss
- Precise RF routing
Semiconductor Test Equipment
Requirements:
- High-frequency signal accuracy
- Repeatable electrical performance
- Reliable interface connection
Automotive Electronics
Requirements:
- Environmental reliability
- Signal stability
- Long service lifetime
Conclusion
Multilayer PCB impedance routing is a critical engineering process that directly affects high-speed signal performance and product reliability.
Successful impedance control requires coordination between:
- PCB stack-up design
- Material selection
- Trace geometry
- Signal routing strategy
- Manufacturing capability
Through practical routing experience, accurate simulation analysis, and strict manufacturing verification, engineers can minimize signal integrity risks and develop reliable high-performance PCB solutions.
As electronic systems continue moving toward higher frequencies and greater integration, impedance-controlled multilayer PCB design will remain a fundamental technology supporting advanced electronic innovation.
