Modern RF and microwave systems demand circuit boards capable of maintaining signal stability at extremely high frequencies. Standard PCB materials often struggle to meet the performance requirements of radar, satellite communication, and advanced wireless technologies.
The Duroid 6010 PCB is designed specifically for these demanding RF environments. Manufactured using ceramic-filled PTFE composite laminates, this material offers a high dielectric constant and excellent electrical stability, making it ideal for compact RF circuits and microwave components.
What is Duroid 6010 PCB?

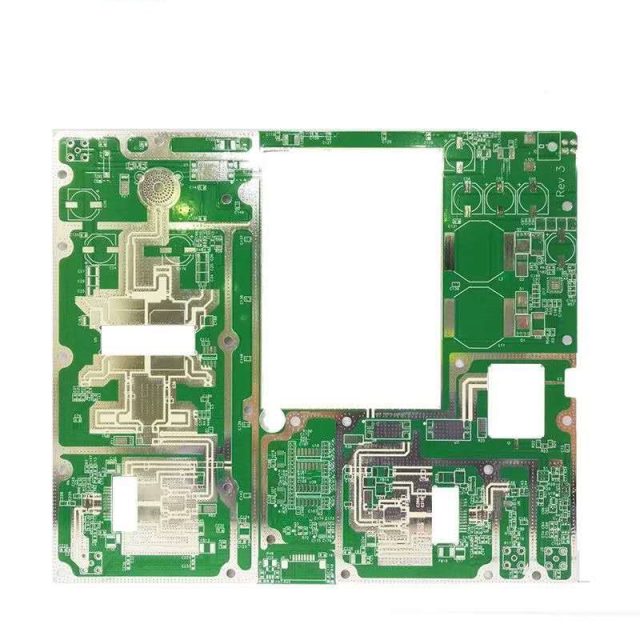

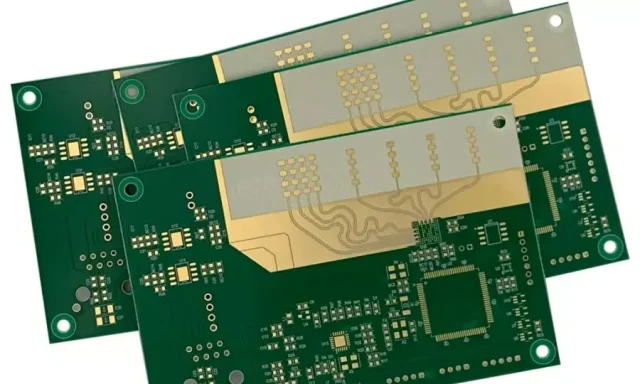

A Duroid 6010 PCB is a high-frequency printed circuit board fabricated using Rogers RT/duroid 6010 laminate, a ceramic-filled PTFE composite material.
This advanced substrate is designed to deliver stable electrical performance for microwave frequencies while maintaining reliable mechanical strength.
Key characteristics include:
-
High dielectric constant
-
Low dielectric loss
-
Stable electrical performance across temperature variations
-
Excellent dimensional stability
These features make Duroid 6010 a preferred material for high-frequency electronic circuits.
Key Electrical Properties of Duroid 6010 PCB
Duroid 6010 laminates are engineered to deliver excellent RF performance across microwave frequencies.
Typical electrical properties include:
-
High dielectric constant (~10.2)
-
Low dissipation factor for reduced signal loss
-
Stable dielectric properties over temperature changes
-
High insulation resistance
The high dielectric constant allows engineers to design smaller RF circuits, making it useful for compact microwave devices.
Advantages of Duroid 6010 PCB
1. Compact RF Circuit Design
The high dielectric constant of Duroid 6010 enables smaller transmission lines and compact RF structures. This is especially beneficial for space-constrained microwave systems.
Engineers can reduce circuit size without compromising electrical performance.
2. Excellent Microwave Frequency Performance
Duroid 6010 materials maintain stable electrical characteristics at microwave frequencies. This helps ensure reliable signal transmission in high-frequency communication and radar systems.
3. Strong Thermal Stability
RF circuits often generate heat during operation. Duroid 6010 laminates offer stable electrical performance across a wide temperature range, helping maintain consistent circuit behavior.
4. Reliable Mechanical Strength
The ceramic-filled PTFE composite structure improves mechanical stability and durability. This makes the material suitable for multilayer RF PCB fabrication.
Applications of Duroid 6010 PCB
Duroid 6010 PCBs are widely used in high-frequency electronic systems that require stable RF performance.
Common applications include:
-
Radar systems
-
Satellite communication equipment
-
RF power amplifiers
-
Microwave filters
-
Wireless communication infrastructure
-
Aerospace and defense electronics
These applications require materials that support high-frequency operation while maintaining long-term reliability.
Manufacturing Considerations
Manufacturing Duroid 6010 PCBs requires specialized processing techniques due to the PTFE-based substrate.
Important fabrication considerations include:
-
Precision impedance control for RF transmission lines
-
Controlled drilling processes for vias
-
Accurate copper etching for high-frequency traces
-
Careful lamination processes for multilayer boards
Experienced PCB manufacturers ensure consistent electrical performance and manufacturing quality.
Conclusion
Duroid 6010 PCB materials provide exceptional electrical stability for high-frequency RF and microwave circuits. With their high dielectric constant, low signal loss, and strong thermal performance, these PCBs are widely used in radar systems, satellite communication, and advanced wireless electronics.
As RF technologies continue to evolve, Duroid 6010 PCBs remain an important solution for compact, high-performance microwave circuit designs.
