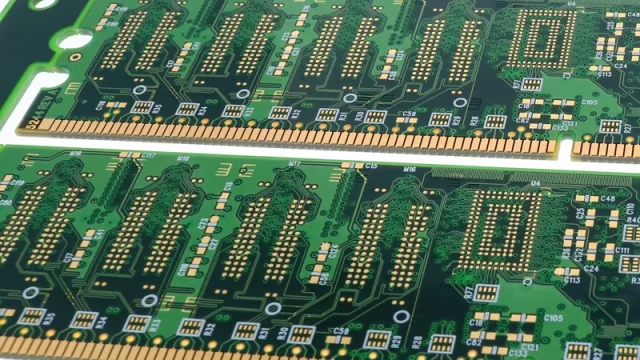

As electronic devices become smaller and more powerful, PCB designers face a constant challenge: fitting more circuitry into less space. Traditional through-hole vias can quickly consume valuable routing area, especially in multilayer boards.
This is where Buried Via PCB technology becomes extremely useful. By placing vias entirely within internal layers, designers can maximize routing space on outer layers while maintaining reliable electrical connections.
Buried vias are a key element in modern HDI (High Density Interconnect) PCB design and are widely used in high-performance electronics.
What Is a Buried Via in PCB?
A buried via is a plated hole that connects two or more internal layers of a multilayer PCB but does not reach the outer layers of the board.
Unlike other via types:
• Through vias connect the top and bottom layers
• Blind vias connect an outer layer to one or more internal layers

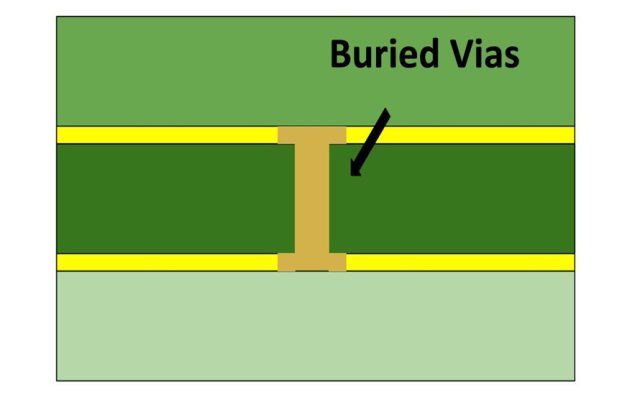

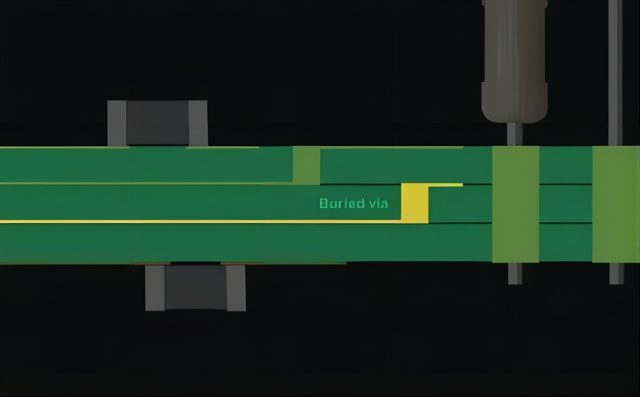

• Buried vias connect internal layers only
Because buried vias are invisible from the outside of the PCB, they allow more space for surface routing and component placement.
Advantages of Buried Via PCB Technology
Higher Routing Density
Buried vias free up outer layers for signal routing and component placement, which is critical in compact electronic designs.
Improved Signal Integrity
Shorter internal connections reduce signal interference and improve performance in high-speed circuits.
Better Layer Utilization
Designers can optimize multilayer structures more efficiently when internal connections do not occupy surface layers.
Essential for HDI Designs
Many HDI PCB architectures rely on combinations of buried vias and blind vias to achieve ultra-high wiring density.
Manufacturing Process of Buried Via PCBs
Producing buried vias requires more complex fabrication steps than standard PCB manufacturing.
The typical process includes:
-
Inner layer drilling
-
Via plating
-
Lamination with additional layers
-
Final drilling and plating for other vias
Because buried vias are created before the final lamination stages, manufacturing precision must be extremely high.
Even small alignment errors can affect connectivity between internal layers.
Design Considerations for Buried Via PCB
Designers must carefully plan buried via structures during the PCB layout stage.
Important considerations include:
Layer stack-up planning
Buried vias must align with the internal layer structure.
Via size and aspect ratio
Proper dimensions ensure reliable plating and electrical conductivity.
Manufacturing limitations
Not all PCB factories support advanced buried via processes.
Cost impact
Additional lamination cycles increase manufacturing cost.
Balancing performance and manufacturability is essential.
Applications of Buried Via PCBs
Buried via technology is widely used in advanced electronic systems.
Smartphones and Mobile Devices
Compact layouts require extremely high routing density.
Networking and Data Centers
High-speed signals benefit from improved signal integrity.
Automotive Electronics
Advanced driver assistance systems demand multilayer high-density boards.
Aerospace and Defense Systems
High-reliability PCBs often integrate buried via structures for optimized signal routing.
Why Buried Via PCBs Matter in Modern Electronics
The trend toward miniaturization and higher performance continues to push PCB technology forward. Buried vias allow designers to create complex multilayer circuits without sacrificing space or signal quality.
For many high-end electronic products, Buried Via PCB technology is no longer optional—it is a necessity.
As device complexity grows, buried vias will remain a fundamental building block of next-generation PCB design.
