As electronic products continue developing toward higher power density, smaller size, and improved reliability, thermal management has become a critical challenge in PCB design.

Excessive heat accumulation can negatively affect electronic systems by causing:

• Component aging
• Reduced performance
• Shortened product lifetime
• Increased failure risk

Traditional FR-4 PCBs may not always provide sufficient heat dissipation capability for high-power applications. To address these challenges, aluminum-based PCBs have become an effective thermal management solution.

Also known as aluminum PCBs, metal core PCBs (MCPCB), or aluminum substrate PCBs, these boards use aluminum as the base material to provide enhanced thermal conductivity while maintaining electrical insulation.

Today, aluminum-based PCBs are widely used in:

• LED lighting systems
• Automotive electronics
• Power conversion equipment
• Industrial control systems
• Energy-related applications

1. What Is an Aluminum-Based PCB?

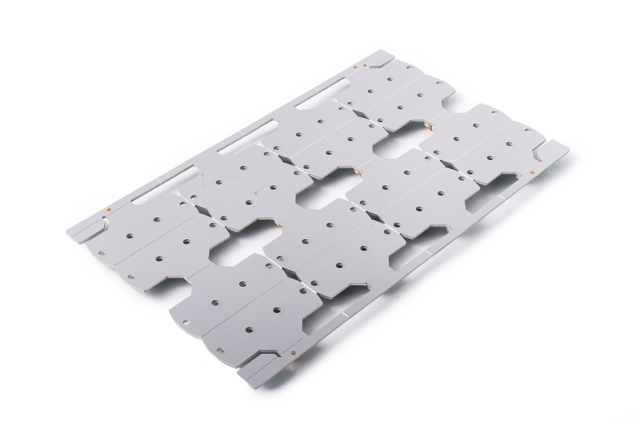

An aluminum-based PCB is a type of metal core PCB that uses aluminum as the supporting substrate.

Unlike conventional FR-4 PCBs, which mainly use fiberglass and epoxy resin, aluminum PCBs typically consist of three main layers:

Copper Circuit Layer

The copper layer provides electrical connections for components and signal transmission.

Dielectric Insulation Layer

The insulation layer electrically separates the copper circuit from the aluminum base while transferring heat efficiently.

Aluminum Base Layer

The aluminum layer provides:

• Mechanical support
• Heat dissipation capability
• Structural stability

This structure allows aluminum PCBs to achieve both electrical insulation and efficient thermal management.

2. Why Is Thermal Management Important in PCB Design?

Modern electronic systems often operate under higher power conditions.

Heat-generating components include:

• LEDs
• Power ICs
• MOSFETs
• Voltage regulators
• Motor drivers

If heat cannot be effectively removed, it may result in:

• Increased junction temperature
• Reduced component efficiency
• Thermal stress
• Premature failure

Therefore, improving heat dissipation has become an important consideration in PCB development.

3. Key Advantages of Aluminum-Based PCBs

3.1 Excellent Heat Dissipation Performance

The primary advantage of aluminum-based PCBs is their superior thermal conductivity compared with traditional PCB materials.

The aluminum substrate provides an efficient path for transferring heat away from components.

Benefits include:

• Lower operating temperature
• Improved thermal stability
• Extended component lifetime

This makes aluminum PCBs especially suitable for high-power electronic applications.

3.2 Improved Product Reliability

Temperature is one of the main factors affecting electronic reliability.

By reducing heat accumulation, aluminum-based PCBs help:

• Minimize thermal stress
• Improve component stability
• Reduce failure rates

This is particularly important for products requiring long-term continuous operation.

Examples include:

• Industrial equipment
• Automotive systems
• Outdoor electronics

3.3 Better Mechanical Strength

Compared with standard organic substrates, aluminum provides stronger mechanical support.

Advantages include:

• Improved rigidity
• Better dimensional stability
• Resistance to mechanical deformation

This is beneficial for applications exposed to:

• Vibration
• Mechanical stress
• Environmental changes

3.4 Lightweight and Compact Design

Aluminum-based PCBs can reduce the need for additional cooling structures.

Compared with solutions using:

• External heat sinks
• Additional cooling components

Aluminum PCBs allow more compact product designs.

Benefits include:

• Reduced system size
• Simplified assembly
• Lower overall weight

3.5 Excellent Electrical Insulation Capability

Although aluminum is conductive, the dielectric layer provides electrical isolation between the circuit layer and metal core.

A properly designed aluminum PCB achieves:

• Reliable insulation
• Stable electrical performance
• Safe operation under power conditions

3.6 Good Dimensional Stability

Aluminum has stable mechanical properties under temperature changes.

Compared with traditional materials, aluminum-based PCBs provide:

• Lower thermal expansion variation
• Better structural consistency
• Improved reliability during thermal cycling

4. Applications of Aluminum-Based PCBs

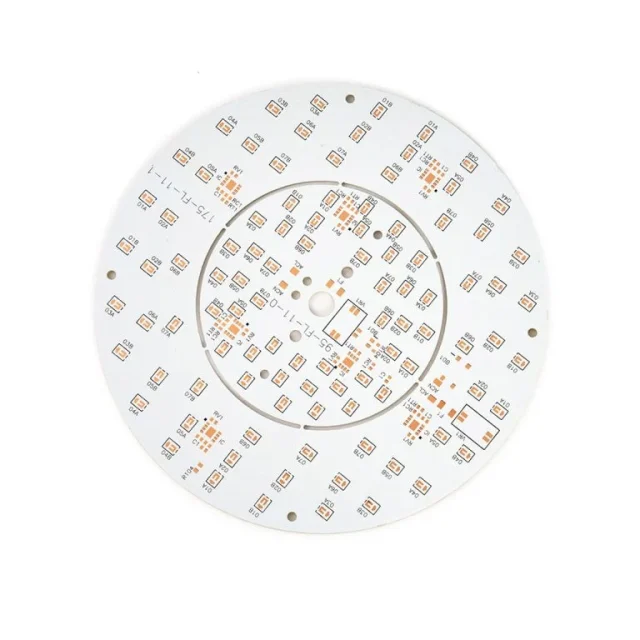

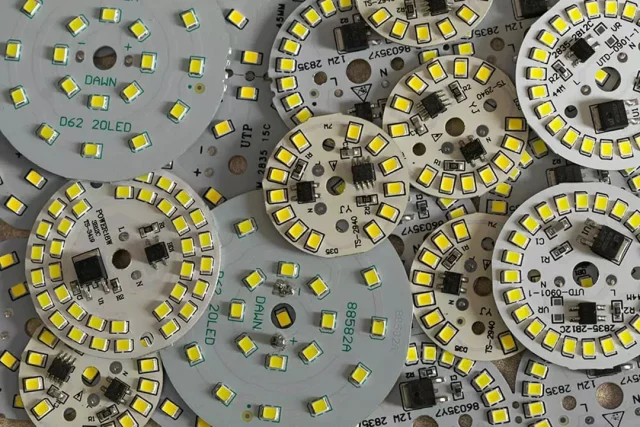

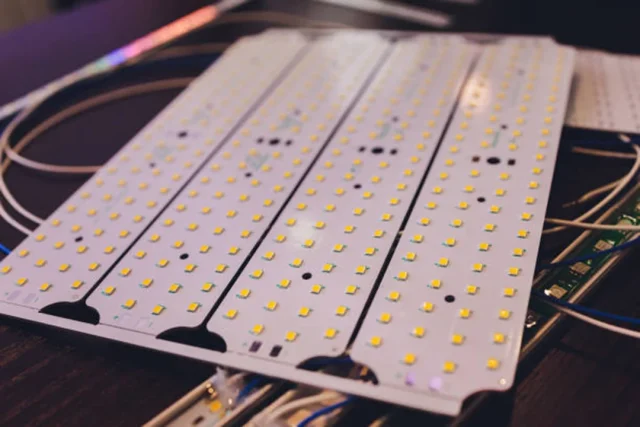

4.1 LED Lighting Applications

LED systems generate significant heat during operation.

Aluminum PCBs are widely used in:

• High-power LED modules
• Automotive lighting
• Street lighting
• Industrial lighting

Advantages include:

• Faster heat dissipation
• Improved LED lifetime
• Stable brightness performance

4.2 Automotive Electronics

Automotive electronics require reliable operation under demanding conditions.

Applications include:

• LED headlights
• Vehicle power modules
• Battery-related systems
• Motor control electronics

Aluminum PCBs provide:

• Thermal reliability
• Mechanical durability
• Environmental resistance

4.3 Power Electronics

Power electronic devices often operate with high current and heat generation.

Applications include:

• Power converters
• Inverters
• Motor drivers
• Power supply systems

Aluminum PCBs help improve:

• Heat management
• System efficiency
• Long-term reliability

4.4 Industrial Control Equipment

Industrial equipment often requires continuous operation.

Aluminum-based PCBs support:

• Stable thermal performance
• Mechanical reliability
• Long service life

Applications include:

• Automation systems
• Industrial controllers
• Machine equipment

4.5 Renewable Energy Systems

Energy-related equipment requires reliable thermal management.

Applications include:

• Solar power electronics
• Energy storage systems
• Power management modules

5. Aluminum PCB vs FR-4 PCB Comparison

6. Design Considerations for Aluminum-Based PCBs

6.1 Thermal Design Optimization

Engineers should analyze:

• Heat generation sources
• Heat transfer paths
• Component placement

Proper thermal design improves overall system performance.

6.2 Dielectric Layer Selection

The insulation layer directly affects:

• Thermal conductivity
• Electrical insulation
• Reliability

Important parameters include:

• Thermal resistance
• Breakdown voltage
• Thickness

6.3 Copper Thickness Selection

Copper thickness should be selected according to:

• Current requirements
• Power density
• Thermal conditions

Higher current applications may require thicker copper layers.

6.4 Manufacturing Process Control

Aluminum PCB manufacturing requires attention to:

• Layer bonding reliability
• Insulation consistency
• Surface treatment quality
• Thermal stress control

Proper process management ensures long-term reliability.

7. Limitations of Aluminum-Based PCBs

Although aluminum PCBs offer excellent thermal performance, they also have some limitations.

Limited Multilayer Capability

Compared with traditional multilayer FR-4 PCBs, aluminum PCBs have fewer options for complex multilayer routing.

Lower Design Flexibility

Due to the metal core structure, applications requiring:

• Complex routing
• High-density interconnect
• Flexible structures

may require alternative PCB technologies.

Higher Material Cost

Aluminum substrate materials and specialized manufacturing processes may increase production costs.

However, the improved reliability and thermal performance can provide long-term value for suitable applications.

8. Future Development Trends of Aluminum-Based PCBs

With increasing demand for:

• Electric vehicles
• High-power LEDs
• Renewable energy systems
• Industrial automation

aluminum PCB technology continues to evolve.

Future developments include:

• Higher thermal conductivity insulation materials
• Improved multilayer aluminum PCB structures
• Better integration with power semiconductor devices
• Enhanced reliability for harsh environments

Conclusion

Aluminum-based PCBs provide an effective solution for electronic applications where thermal management and reliability are critical.

Their advantages in:

• Heat dissipation
• Mechanical strength
• Electrical insulation
• Long-term stability

make them widely used in LED lighting, automotive electronics, power systems, and industrial applications.

However, successful application requires careful consideration of thermal design, dielectric selection, PCB structure, and manufacturing capability.

By selecting the appropriate PCB technology based on product requirements, engineers can achieve improved performance, higher reliability, and optimized electronic system designs.
