Advanced High-Frequency PCB Materials for RF and Microwave Applications

As modern wireless communication and microwave electronics continue advancing toward:

5G and 6G communication
millimeter-wave systems
automotive radar
satellite communication
RF test equipment
high-speed aerospace electronics

the demand for high-performance high-frequency PCB laminates continues growing rapidly.

Modern RF PCB and microwave PCB systems require materials capable of providing:

low dielectric loss
stable dielectric constant
excellent signal integrity
superior thermal reliability
consistent impedance control

Among advanced RF laminate materials, TC Series High-Frequency Laminates are widely used in:

microstrip circuits
stripline circuits
multilayer RF PCB structures
microwave communication systems
high-speed RF modules

These advanced laminates are specifically engineered for:

low-loss RF signal transmission
precision impedance control
multilayer high-frequency PCB fabrication

This article explores the fabrication guidelines for TC Series High-Frequency Laminates, including:

microstrip PCB design
stripline PCB structures
multilayer RF PCB manufacturing
drilling and routing techniques
thermal processing
impedance control optimization
RF PCB reliability considerations

Overview of TC Series High-Frequency Laminates

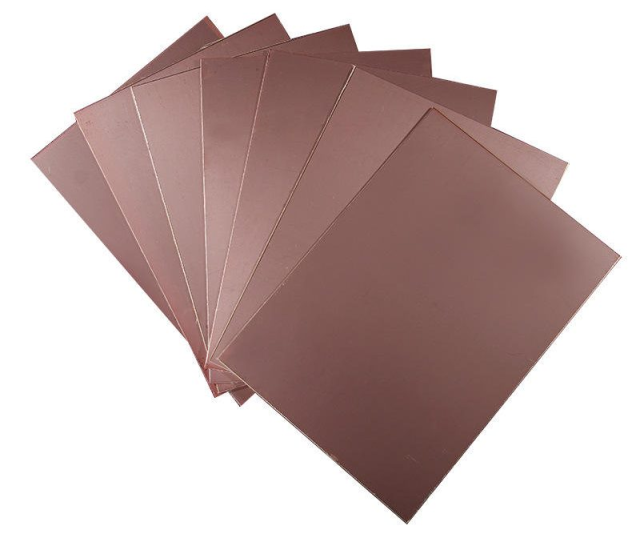

TC series laminates

What Are TC Series High-Frequency Laminates?

TC Series laminates are advanced high-frequency PCB materials designed for:

RF PCB applications
microwave PCB systems
millimeter-wave PCB structures
high-speed communication circuits

These laminates provide:

low insertion loss
stable dielectric performance
excellent dimensional stability
reliable multilayer PCB fabrication capability

TC Series materials are optimized for:

microstrip transmission lines
stripline transmission structures
controlled impedance PCB design

Key Electrical Characteristics of TC Series Laminates

1. Low Dielectric Constant (Dk)

TC Series laminates offer stable dielectric properties critical for:

controlled impedance PCB design
RF transmission consistency
microwave signal stability

Benefits:

reduced signal delay variation
stable RF propagation
improved signal integrity

2. Low Dissipation Factor (Df)

Low dielectric loss improves:

RF signal efficiency
insertion loss performance
high-frequency transmission quality

Applications include:

5G RF PCB
mmWave PCB
microwave antenna systems

3. Excellent Thermal Stability

Thermal stability helps maintain:

impedance consistency
multilayer PCB reliability
RF measurement stability

This is critical for:

aerospace RF electronics
automotive radar PCB systems
industrial RF modules

4. Dimensional Stability

TC Series laminates maintain:

accurate PCB geometry
stable registration alignment
reliable multilayer lamination

Dimensional consistency is essential for:

fine-line RF circuits
multilayer RF PCB fabrication
precision impedance structures

Microstrip Circuit Fabrication Guidelines

What Is a Microstrip Circuit?

A microstrip transmission line consists of:

a signal trace on the PCB surface
a reference ground plane beneath the dielectric layer

Microstrip PCB structures are widely used in:

RF amplifiers
antenna feed networks
RF filters
microwave communication systems

Key Microstrip PCB Design Considerations

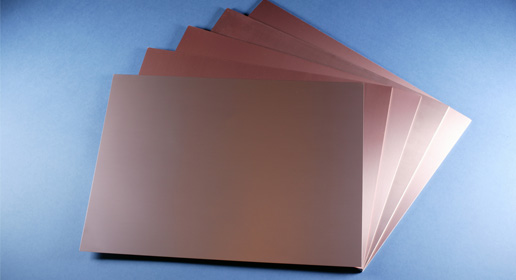

TC series laminates

1. Controlled Impedance Routing

Microstrip impedance depends on:

trace width
dielectric thickness
dielectric constant
copper thickness

Accurate impedance control improves:

signal integrity
RF transmission efficiency
insertion loss stability

2. Surface Copper Roughness Control

At high frequencies:

conductor surface roughness increases RF loss

Low-profile copper foil improves:

insertion loss performance
microwave signal quality
mmWave transmission stability

3. Ground Plane Integrity

Continuous ground planes improve:

return current stability
EMI suppression
RF signal consistency

Ground discontinuities may cause:

impedance variation
RF radiation
signal reflection

Stripline Circuit Fabrication Guidelines

What Is a Stripline Circuit?

A stripline transmission line is embedded between:

two ground planes
inside:
multilayer PCB structures

Stripline routing offers:

improved EMI shielding
reduced radiation
excellent impedance stability

Applications include:

high-speed RF systems
aerospace communication
microwave radar modules

Key Stripline PCB Design Considerations

1. Symmetrical PCB Stack-Up

Balanced multilayer PCB structures improve:

impedance consistency
signal timing stability
lamination reliability

2. Precise Dielectric Thickness Control

Small dielectric variations affect:

controlled impedance
RF phase stability
insertion loss

Tight fabrication tolerance is critical for:

microwave PCB systems
mmWave transmission lines

3. Via Optimization

Stripline vias may introduce:

parasitic inductance
impedance discontinuities
signal reflection

Optimization methods:

back drilling
ground via stitching
minimized via stub length

Multilayer RF PCB Fabrication Guidelines

1. Multilayer Lamination Control

Proper multilayer PCB lamination ensures:

dimensional stability
layer registration accuracy
reliable RF performance

Critical parameters:

lamination temperature
pressure control
resin flow management

2. Controlled Resin Flow

Excessive resin flow may cause:

dielectric thickness variation
impedance inconsistency
RF performance degradation

3. Registration Accuracy

Precise layer alignment improves:

multilayer PCB reliability
impedance consistency
RF circuit performance

4. Copper Balancing

Balanced copper distribution minimizes:

PCB warpage
thermal stress
dimensional instability

Drilling and Hole Preparation Guidelines

1. Mechanical Drilling Optimization

TC Series materials require:

sharp drill tools
optimized feed rates
controlled spindle speed

Proper drilling reduces:

smear formation
hole wall damage
dimensional variation

2. Hole Wall Quality Control

Poor hole quality can affect:

plating reliability
RF grounding performance
multilayer interconnection stability

3. Plasma Processing

Plasma treatment improves:

hole cleanliness
resin removal
copper adhesion

Especially important for:

PTFE-based RF laminates
multilayer microwave PCB fabrication

PCB Routing and Circuit Etching Guidelines

1. Fine-Line Etching Accuracy

RF circuits require:

precise conductor geometry
tight dimensional tolerance
smooth trace edges

Etching quality directly impacts:

impedance stability
insertion loss
RF signal integrity

2. Trace Geometry Optimization

Recommended practices:

smooth routing transitions
minimal sharp corners
controlled trace spacing

This reduces:

signal reflection
EMI coupling
RF discontinuities

Surface Finish Recommendations

Common RF PCB finishes:

ENIG
immersion silver
immersion tin

Surface finish selection affects:

insertion loss
solderability
RF conductivity

Thermal Management Considerations

High-frequency RF circuits generate heat from:

conductor loss
dielectric loss
RF power amplification

Thermal management methods:

thermal vias
copper planes
heat spreaders
metal-backed PCB structures

Inspection and Quality Control

1. Controlled Impedance Testing

Impedance verification ensures:

RF transmission consistency
signal integrity compliance
microwave performance stability

2. AOI Inspection

Automated optical inspection checks:

fine-line accuracy
trace geometry
PCB defects

3. RF Performance Validation

Testing may include:

insertion loss measurement
return loss analysis
S-parameter testing

Applications of TC Series High-Frequency Laminates

TC Series laminates are widely used in:

5G communication systems
satellite RF modules
aerospace electronics
automotive radar systems
RF test equipment
microwave antennas
military RF communication
mmWave PCB systems

Future Trends in High-Frequency PCB Fabrication

1. Higher Frequency mmWave Applications

Supporting:

77 GHz radar
110 GHz communication
terahertz systems

2. Ultra-Low-Loss PCB Materials

Future materials focus on:

lower dielectric loss
improved thermal stability
tighter impedance control

3. Advanced Multilayer RF Integration

Including:

antenna-in-package (AiP)
embedded RF modules
ultra-dense RF PCB structures

4. AI-Assisted RF PCB Manufacturing

Using:

intelligent process control
automated impedance optimization
predictive quality analysis

Conclusion

The fabrication of TC Series High-Frequency Laminates for:

microstrip circuits
stripline circuits
multilayer RF PCB structures

requires highly controlled PCB manufacturing processes.

Critical fabrication factors include:

controlled impedance PCB design
multilayer lamination precision
dielectric thickness consistency
fine-line etching accuracy
optimized drilling technology
RF signal integrity control

By following advanced RF PCB fabrication guidelines, manufacturers can achieve:

low insertion loss
stable microwave performance
excellent impedance consistency
reliable high-frequency PCB operation

As wireless technology continues advancing toward:

higher frequency
faster communication
greater integration

advanced high-frequency laminate fabrication technology will remain essential for next-generation RF and microwave electronic systems.
