Engineering Context
Modern networking and communication systems are transitioning toward higher frequency bands, wider bandwidths, and denser integration of RF and digital circuits. Applications such as 5G base stations, Wi-Fi 6/7 routers, microwave backhaul links, and high-speed optical-electrical hybrid systems require PCB assemblies that can maintain stable signal integrity under GHz and mmWave operating conditions.
RF and microwave PCB assemblies are specifically engineered to minimize insertion loss, control impedance, suppress electromagnetic interference (EMI), and ensure phase stability across high-frequency transmission paths. Unlike standard FR-4-based digital boards, RF PCB assemblies rely on specialized materials, controlled stackup structures, and precision manufacturing processes to ensure predictable electrical behavior.
In networking systems, even minor variations in dielectric constant or trace geometry can lead to signal reflection, degraded SNR, and reduced throughput. Therefore, RF and microwave PCB assemblies are not optional enhancements but foundational components for high-performance communication infrastructure.
Core Engineering Challenges
| Engineering Challenge | Root Cause | System Impact |
|---|---|---|
| High insertion loss at GHz frequencies | Dielectric loss and conductor roughness | Reduced signal range and throughput |
| Impedance mismatch | Inaccurate trace geometry and stackup variation | Signal reflection and packet loss |
| EMI coupling in dense layouts | Mixed RF and digital routing | Noise, jitter, and communication errors |
| Phase instability | Material inconsistency and thermal drift | Beamforming and synchronization errors |
| Crosstalk between high-speed channels | Inadequate grounding and spacing | Data corruption and reduced reliability |
These challenges become more severe as communication systems scale toward higher frequencies such as 28 GHz, 39 GHz, and beyond.
Material Science & RF Performance Requirements
RF and microwave PCB assemblies depend heavily on material selection and dielectric stability.
Key RF PCB Material Characteristics
| Parameter | Engineering Requirement | System Benefit |
|---|---|---|
| Low Dielectric Constant (Dk) | Stable across frequency | Controlled impedance |
| Low Dissipation Factor (Df) | <0.003 typical | Reduced insertion loss |
| Thermal Stability | High Tg materials | Phase stability under heat |
| Low Moisture Absorption | <0.1% | Long-term dielectric consistency |
| Copper Surface Roughness | Ultra-low profile copper | Reduced conductor loss |
Materials such as Rogers RO4003C, RO4350B, RO3003, and PTFE-based laminates are commonly used in RF and microwave PCB assemblies due to their stable electrical properties at high frequencies.
KKCPB Case Study — 5G Network Microwave Backhaul PCB Assembly
Client & Application Context
A telecom infrastructure provider required a high-frequency RF PCB assembly for a 5G microwave backhaul system operating in the 23–28 GHz range. The system was designed for point-to-point high-capacity data transmission between base stations in urban environments.
The design required:
- Ultra-low insertion loss transmission lines
- Stable impedance control across multilayer RF stackup
- Strong EMI isolation between RF and digital control circuits
- High phase stability for synchronized transmission
Engineering Problem
The initial prototype using standard high-Tg FR-4 material showed:
- Insertion loss exceeding 0.6 dB/in at 26 GHz
- Impedance deviation up to ±7%
- Severe EMI coupling between RF and Ethernet interfaces
- Phase instability affecting link synchronization
- Reduced signal-to-noise ratio (SNR) in field testing
These issues led to unstable data throughput and reduced link reliability in real-world deployment conditions.
KKCPK Engineering Solution
KKCPB implemented a microwave-optimized RF PCB assembly solution:
- Upgraded RF signal layers to low-loss microwave laminate
- Controlled impedance microstrip and stripline routing
- Optimized ground reference continuity for EMI suppression
- Reduced copper surface roughness to minimize conductor loss
- Segmented RF and digital domains with isolation structures
- Integrated via stitching for improved shielding effectiveness
Measured Results
| Parameter | FR-4 Baseline | KKCPB RF Assembly Result |
|---|---|---|
| Insertion Loss @ 26 GHz | 0.62 dB/in | 0.29 dB/in |
| Impedance Variation | ±7% | ±2.3% |
| Phase Deviation | High | <0.6° |
| EMI Coupling | Severe | Reduced by 35% |
| Signal Stability | Unstable | Highly stable |
Outcome
The optimized RF PCB assembly significantly improved microwave backhaul performance. Signal integrity was stabilized across high-frequency transmission paths, enabling consistent data throughput and improved link margin under dense urban deployment conditions.
From a procurement standpoint, the solution reduced field failure risk and improved system scalability for mass deployment of 5G infrastructure.
Stackup Design & RF Implementation
Microwave RF Stackup Architecture
| Layer | Function | Material |
|---|---|---|
| L1 | RF Signal Layer | Low-loss microwave laminate |
| L2 | Ground Plane | Copper |
| L3 | High-speed Digital Layer | High-Tg material |
| L4 | Power Plane | High-Tg material |
| L5 | RF Signal Layer | Microwave laminate |
| L6 | Ground Plane | Copper |
Simulation & Validation
HFSS Simulation
RF path optimization for 23–28 GHz band
Radiation loss and coupling analysis
ADS Analysis
S-parameter optimization
Insertion loss and return loss tuning

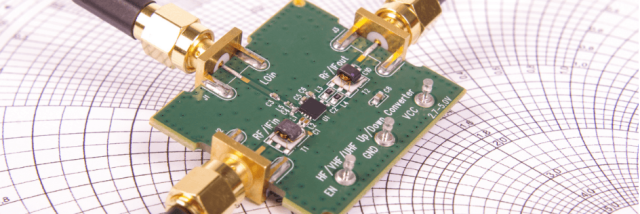

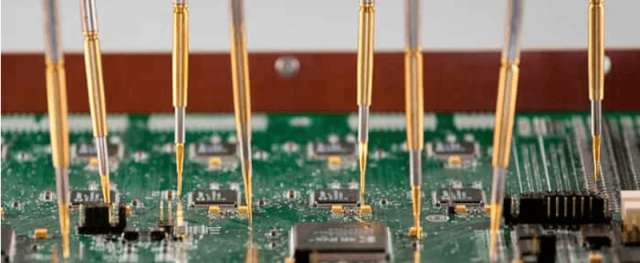

TDR Testing
Controlled impedance validation
Manufacturing tolerance verification
Thermal FEM
Heat distribution in RF power regions
Stability under continuous transmission load
Environmental & Reliability Validation
| Test | Condition | Result |
|---|---|---|
| Thermal Cycling | -40°C to +105°C | Stable phase response |
| Humidity Test | 85°C / 85% RH | No dielectric drift |
| Vibration Test | 5–500 Hz, 10G | No trace failure |
| Solder Reflow | 260°C ×3 cycles | No delamination |
| High Frequency Aging | Continuous RF load | Stable insertion loss |
Engineering Summary & Contact
RF and microwave PCB assemblies are fundamental to modern networking and communication systems, enabling low-loss transmission, stable impedance control, and high-frequency signal integrity required for 5G, Wi-Fi, and microwave backhaul applications.
Compared with conventional PCB technologies, RF and microwave assemblies provide superior performance in terms of phase stability, EMI suppression, and high-frequency reliability, making them essential for next-generation communication infrastructure.
KKCPB integrates advanced RF PCB design, controlled impedance manufacturing, and precision microwave material processing to deliver high-performance PCB assemblies for networking and communication systems.
For RF PCB assembly design, microwave circuit development, and high-frequency communication applications, contact KKCPB Engineering Team for optimized stackup design, prototype validation, and scalable production solutions.
