What You Should Know About Bluetooth Modules and Bluetooth PCBs

Bluetooth technology has become a cornerstone of short-range wireless communication, empowering devices such as headphones, speakers, smart appliances, wearables, industrial sensors, medical instruments, and countless IoT systems. At the heart of these wireless products lies a sophisticated combination of Bluetooth modules and Bluetooth PCBs, which together enable stable, low-power, and secure wireless connectivity.

Designing a Bluetooth module—or a PCB that integrates it—requires understanding RF engineering, antenna tuning, power management, and system-level architecture. This article explores the fundamentals, working principles, design considerations, and manufacturing processes involved in Bluetooth module development.

1. What Is a Bluetooth Module?

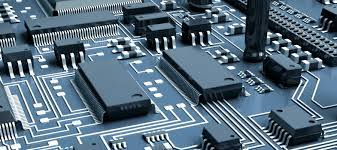

Bluetooth PCB

A Bluetooth module is a compact PCBA (Printed Circuit Board Assembly) that integrates all the electronic hardware needed for Bluetooth communication. A typical module includes:

  • Bluetooth SoC (System on Chip)

  • RF front-end components

  • Antenna or antenna interface

  • Oscillators and timing components

  • Power regulation circuitry

  • Peripheral interfaces (UART, SPI, I²C, GPIOs)

Bluetooth operates in the global 2.4 GHz ISM band, supporting data rates around 1 Mbps (Classic) and 1–2 Mbps (BLE). It supports full-duplex communication, allowing simultaneous two-way data transfer—an advantage over many other low-power wireless technologies.

Bluetooth Classes & Range

Class
Output Power
Typical Range
Class 1 100 mW up to 100 m
Class 2 2.5 mW ~10 m
Class 3 1 mW ~1 m

Class 2 modules are most common in consumer products, while Class 1 modules are preferred in industrial or long-range applications.

2. Types of Bluetooth Modules

Bluetooth modules fall into three major categories based on function:

2.1 Data Transmission Modules

Used for non-audio data exchange.
Features:

  • Bluetooth transceiver

  • MCU or co-processor

  • Antenna & matching network

  • Power regulation

Example: HC-05 Bluetooth serial module (Class 2)

Applications:

  • Wireless UART communication

  • Robot/microcontroller data links

  • Sensor data transfer

  • Remote control systems

2.2 Bluetooth Audio Modules

Designed to handle real-time audio streaming.

Additional features:

  • Audio CODEC

  • Power amplifier

  • Audio I/O interfaces

  • Noise filtering circuits

Example: DFPlayer Mini MP3/Bluetooth Audio Module

Applications:

  • Wireless speakers

  • Headsets & earbuds

  • Hands-free automotive systems

2.3 Audio + Data Combo Modules

Provide both audio streaming and general-purpose data communication.

Example: Microchip RN52 Bluetooth Audio + Data Module

Applications:

  • Smart speakers

  • Bluetooth multimedia systems

  • Advanced IoT gateways with audio capability

3. How a Bluetooth Module Works

Bluetooth PCB

Bluetooth uses a master–slave architecture to form networks known as piconets. One master can connect to up to seven active slaves.

Connection Process

  1. Inquiry phase – Devices detect each other.

  2. Paging phase – Devices exchange addresses and initiate a link.

  3. Connection state – Devices operate in modes such as Active, Sniff (low-power), Hold, or Park mode.

Each device has a unique 48-bit BD_ADDR, identifying its manufacturer and device identity.

4. Key Considerations in Developing a Bluetooth Module or PCB

Designing a Bluetooth PCB requires expertise in RF, antenna engineering, PCB layout, and EMI mitigation.

4.1 Bluetooth Module Selection

Choose based on:

  • Bluetooth version (BLE 5.x, Classic, Dual-Mode)

  • Data rate requirements

  • Range & TX power

  • Sensitivity

  • Chipset vendor

  • Power consumption modes

  • Package size

  • Regulatory certifications (FCC/CE/TELEC/etc.)

4.2 Circuit Design Considerations

Antenna Requirements

  • Place at PCB edge

  • Keep area under antenna clear (no ground plane / copper / components)

  • Avoid metal structures nearby

  • Use proper matching networks

Microcontroller Integration

  • Interfaces: UART / SPI / I²C

  • Implement firmware for pairing, data parsing, and peripheral control

Power Supply

  • Clean, low-noise power rail

  • LDO or DC-DC regulator

  • EMI filters

  • Decoupling capacitors close to the SoC

Support Circuits

  • Crystals

  • LEDs & buttons

  • Audio codecs or sensor interfaces

  • Battery charging circuits

4.3 PCB Layout Guidelines

Placement
  • Keep RF chain components close together

  • Avoid crossing digital lines over RF traces

  • Maintain short trace length for antenna, LNA, PA

Routing
  • Wide power and ground traces

  • Use multiple vias when switching layers

  • Shield RF paths with ground stitching vias

Impedance Control

Critical for:

  • RF signals (50 Ω)

  • USB (90 Ω differential)

  • High-speed interfaces

Antenna Design

Compact devices often use PCB trace antennas, including:

  • Inverted-F antenna (IFA)

  • Meandered PCB antenna

  • Chip antenna

  • External antenna connector (IPEX/SMA)

Decoupling & Grounding

  • 0.1 µF capacitors near each IC power pin

  • Solid continuous ground plane

  • RF ground isolation

5. Bluetooth PCB Fabrication

Fabrication requires:

  • Preparing Gerber files

  • Validating component footprints

  • Using controlled-impedance stack-ups

  • Performing lamination, drilling, plating, and etching

  • Applying solder mask and silkscreen

  • Panelizing for mass production

  • Packaging with ESD protection

Professional manufacturers with RF experience are strongly recommended.

6. Bluetooth Module Assembly & Testing

Assembly steps include:

  1. Component sourcing

  2. Solder paste printing

  3. SMT placement

  4. Reflow soldering

  5. AOI and X-ray inspection

  6. Firmware programming

  7. Conformal coating

  8. Full RF testing

Testing must verify:

  • Output power

  • Sensitivity

  • Antenna efficiency

  • Pairing stability

  • Functional communication

Conclusion

Bluetooth modules integrate complex RF, antenna, and digital processing systems into compact PCBA units that enable wireless communication across countless applications. Designing and manufacturing a Bluetooth PCB requires optimized RF layout, careful material selection, antenna tuning, and rigorous testing to ensure high reliability.

Whether used for audio streaming, sensor data transfer, or multifunction IoT systems, Bluetooth technology remains one of the most powerful and versatile wireless standards for modern electronics.
