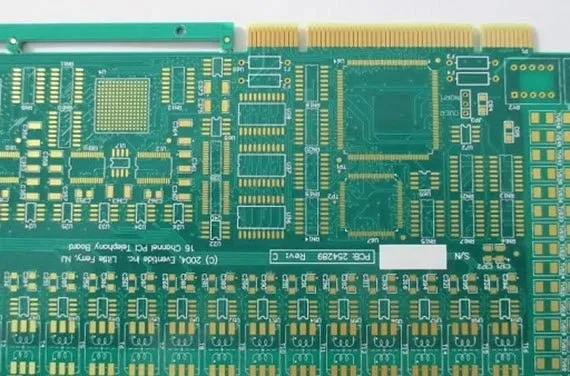

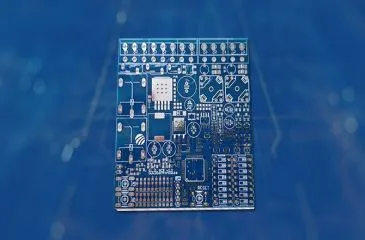

As the demand for high-bandwidth data transmission and 5G infrastructure grows, the choice of PCB base materials becomes a critical factor in system performance. N4800-20, developed by Nelco, is a high-speed, multifunctional epoxy laminate and prepreg system designed specifically for the next generation of high-speed digital (HSD) applications. It offers a unique balance of thermal reliability and superior signal integrity, making it a preferred choice for complex multilayer PCB designs.
1. Exceptional Signal Integrity and Low Loss
In high-frequency environments, signal attenuation can compromise data accuracy. N4800-20 is engineered with advanced resin technology to provide:
- Low Dissipation Factor (Df): With a Df of approximately 0.007 at 10 GHz, it significantly reduces signal loss compared to standard FR-4 materials.
- Stable Dielectric Constant (Dk): It maintains a consistent Dk across various frequencies, ensuring precise controlled impedance for high-speed differential pairs.
2. Superior Thermal Reliability and High Tg
Industrial and telecommunications equipment often operate in high-temperature environments. N4800-20 is built for durability:
- High Glass Transition Temperature (Tg): Boasting a Tg of 200°C (DSC), this material maintains its mechanical properties even during intense thermal cycles.
- Lead-Free Compatibility: It is fully compatible with lead-free soldering processes, meeting the most stringent environmental and assembly requirements.
- Low Z-Axis Expansion: Its low Coefficient of Thermal Expansion (CTE) in the Z-axis ensures the reliability of plated through-holes (PTH), preventing via cracking in high-layer-count boards.
3. CAF Resistance and Long-Term Durability
Conductive Anodic Filament (CAF) growth is a major concern for high-density boards with tight hole-to-hole spacing. N4800-20 features a specialized resin chemistry that provides excellent CAF resistance, ensuring the long-term insulation and reliability of the printed circuit board in humid or high-voltage conditions.
4. Versatile Applications
Due to its multifunctional nature, N4800-20 is widely used in:
- Backplane PCBs: Supporting high-layer-count communication infrastructure.

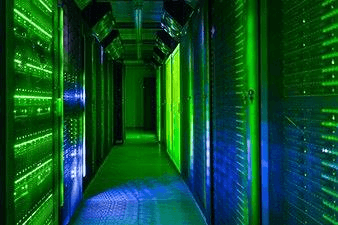

- Enterprise Storage & Servers: Ensuring data integrity for high-capacity servers.
- Network Switches & Routers: Facilitating ultra-fast data switching in telecommunications.
- Military & Aerospace: Providing rugged reliability for mission-critical electronics.
5. Manufacturing Performance at KKPCB
At KKPCB, we utilize N4800-20 to provide our clients with advanced PCB solutions that don’t compromise on speed or safety. Its consistent rheology makes it ideal for complex sequential lamination and hybrid builds. Our precision drilling and plasma desmear processes are optimized for Nelco materials, ensuring clean via walls and superior copper bonding for every project.
