Millimeter-wave (mmWave) technology is rapidly becoming a key enabler for next-generation communication systems such as 5G networks, automotive radar, and high-speed wireless connectivity. Operating at frequencies typically above 24 GHz, mmWave systems require extremely precise RF circuit design and advanced PCB technologies.
At the heart of these systems is the mmWave Module PCB, which integrates RF front-end components, antennas, power management circuits, and signal processing units. Designing PCBs for millimeter-wave applications requires specialized materials, accurate impedance control, and careful layout optimization.

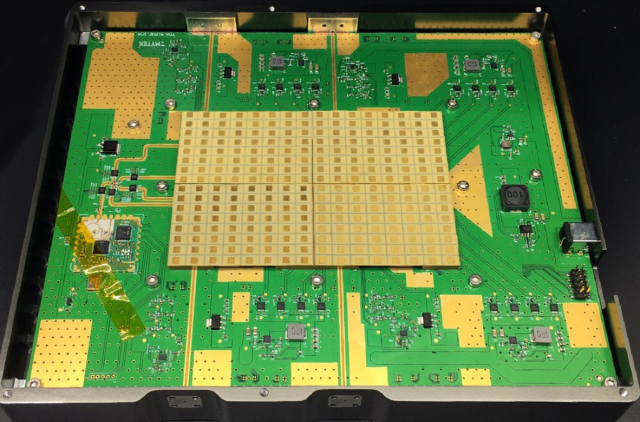

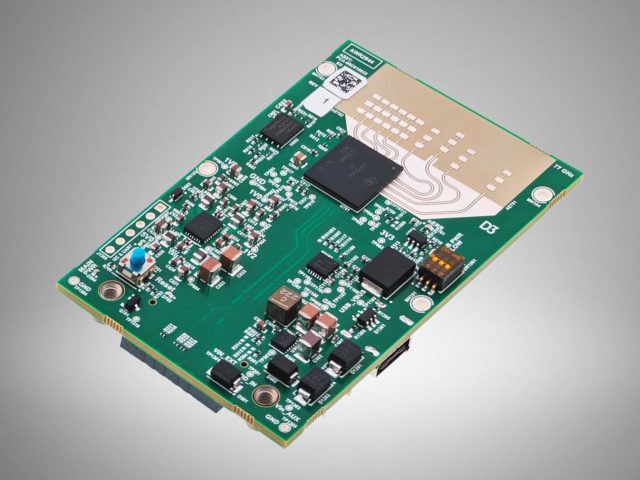

What is an mmWave Module PCB?
An mmWave Module PCB is a high-frequency circuit board designed to support millimeter-wave signals, typically ranging from 24 GHz to 100 GHz and beyond.
These PCBs are commonly used in compact RF modules that integrate:
-
RF transceivers
-
Antenna arrays
-
Power amplifiers
-
Signal processing components
Because mmWave signals are extremely sensitive to loss and interference, the PCB must be carefully engineered to maintain signal integrity.
Key Technical Requirements for mmWave Module PCB
1. Ultra-Low Loss Materials
At millimeter-wave frequencies, even small signal losses can significantly affect performance.
Common PCB materials used for mmWave modules include:
-
Rogers high-frequency laminates
-
PTFE-based materials
-
Low-loss hydrocarbon ceramic laminates
These materials provide stable dielectric properties and minimal signal attenuation at high frequencies.
2. Precise Impedance Control
Millimeter-wave circuits require extremely accurate impedance control to maintain signal quality.
Design techniques include:
-
Controlled impedance transmission lines
-
Microstrip or stripline routing
-
Differential pair optimization
Precise impedance matching helps prevent signal reflection and ensures efficient RF transmission.
3. High-Density Multilayer PCB Structure
mmWave modules often integrate multiple RF and digital components in a compact space.
Multilayer PCB structures provide:
-
Efficient signal routing
-
Improved ground shielding
-
Reduced electromagnetic interference
High-density interconnect (HDI) technologies are often used to support complex mmWave module layouts.

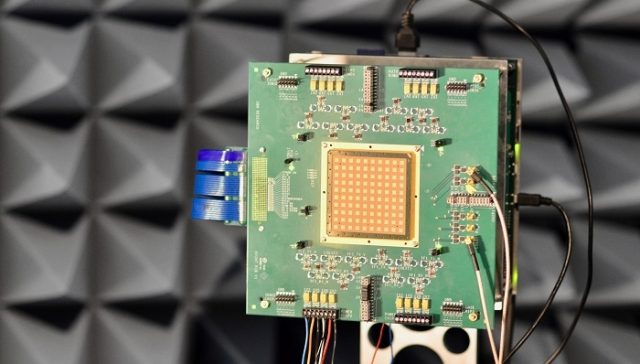

4. Antenna Integration
Many mmWave modules integrate antenna-in-package (AiP) or antenna-on-PCB structures.
PCB designers must consider:
-
Antenna placement
-
Ground plane configuration
-
Radiation efficiency
Proper antenna integration is essential for achieving high signal strength and coverage.
5. Thermal Management
mmWave modules may generate significant heat due to high-frequency operation and power amplification.
Effective thermal solutions include:
-
Thermal vias
-
Copper heat spreading layers
-
Optimized component placement
Good thermal design improves reliability and ensures stable long-term operation.
Applications of mmWave Module PCB
mmWave module PCBs are widely used in advanced wireless technologies, including:
-
5G millimeter-wave base stations
-
Automotive radar systems (77 GHz / 79 GHz)
-
High-speed wireless communication devices
-
Satellite communication systems
-
Advanced driver assistance systems (ADAS)
These applications demand extremely high signal integrity and reliable RF performance.
Manufacturing Challenges of mmWave PCB
Producing mmWave module PCBs requires advanced manufacturing capabilities, including:
-
High precision impedance control
-
Fine line and spacing fabrication
-
Accurate multilayer lamination
-
High-frequency material processing
Strict quality control and RF testing are necessary to ensure consistent performance.
Conclusion
As millimeter-wave technologies continue to expand in 5G communication, automotive radar, and high-speed wireless systems, the importance of high-performance mmWave Module PCBs continues to grow.
By combining low-loss materials, precise RF design techniques, and advanced manufacturing processes, mmWave PCBs provide the foundation for next-generation high-frequency electronic systems.
